Product Introduction
Key Features
- High Current Capacity – 120A contact segmentation capability
- Energy Efficient – Pulse drive operation with low power consumption
- Durable Construction – Strong impact resistance (100G minimum) and high reliability
- Advanced Technology – Magnetic arc extinguishing for safer operation
- Flexible Configuration – Available in single coil and double coil versions
- High Voltage Isolation – 4kV withstand voltage between contact and coil
- Environmental Compliance – RoHS compliant and environmentally friendly
- Wide Temperature Range – Operates from -40°C to +70°C
- Long Service Life – 300,000 operations at 120A 250VAC
Technical Specifications
| Parameter | Specification |
|---|---|

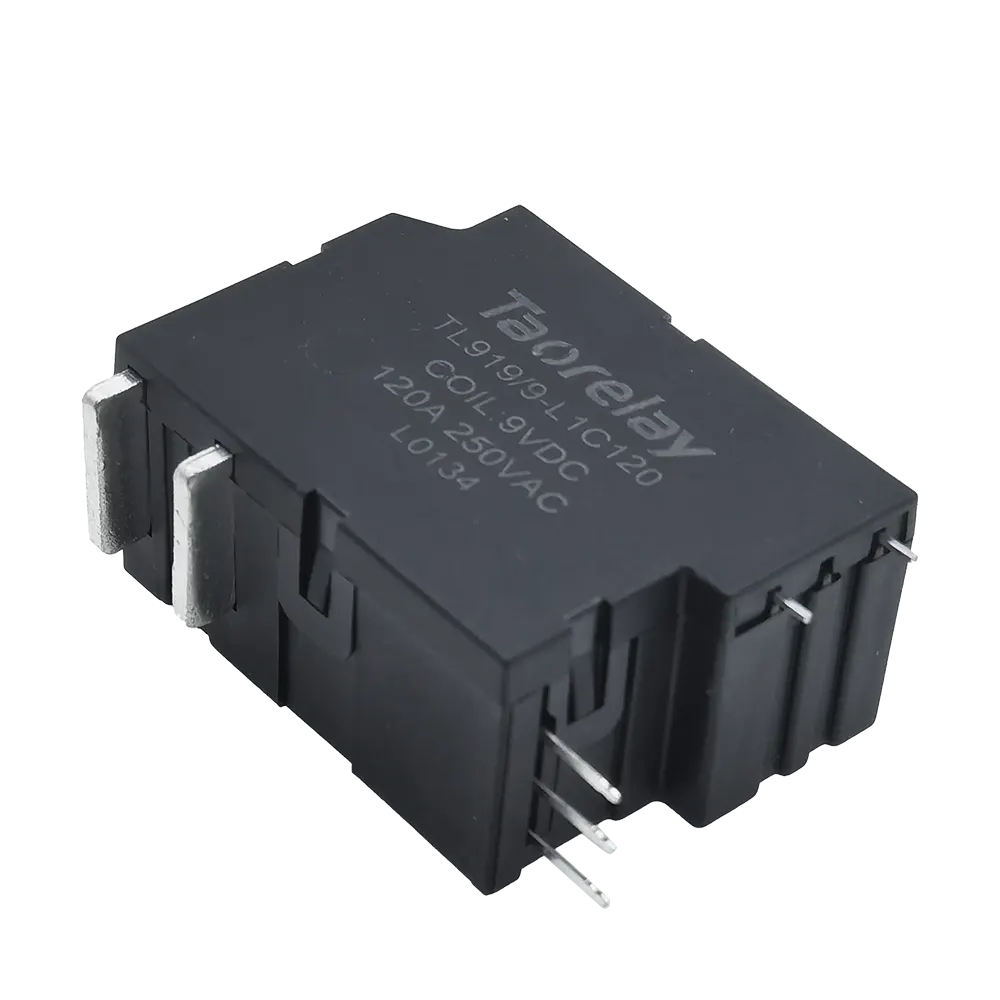

| Model | TL919-120 |
| Rated Load | 120A 250VAC |
| Maximum Switching Current | 120A |
| Maximum Switching Voltage | 440VAC |
| Maximum Switching Power | 37,500VA |
| Contact Resistance | 1mΩ Max |
| Operate/Release Time | 20ms Max |
| Insulation Resistance | 1,000MΩ Min (DC500V) |
| Dielectric Strength | AC2,000V/1min (contact-contact) AC4,000V/1min (contact-coil) |
| Mechanical Life | 300,000 operations |
| Electrical Life | 120A 250VAC: 3,000 ops 120A 60VDC: 1,000 ops 100A 250VAC: 10,000 ops |
| Ambient Temperature | -40°C to +70°C |
| Humidity | 5% to 85% RH |
| Dimensions | 47.1mm × 34.5mm × 22.45mm |
| Weight | Approx. 80g |
| Certifications | IEC62055-31 UC3, RoHS |
Quick Specifications
- Current Rating: 120A
- Voltage Rating: 250VAC (440VAC max)
- Coil Voltage: 6/9/12/24VDC options
- Contact Form: Normally open (with auxiliary contact option)
- Contact Material: Silver alloy
- Operate Time: ≤20ms
- Release Time: ≤20ms
- Insulation: 4kV contact to coil
- Lifespan: 300,000 mechanical operations
Typical Applications
The 120A magnetic latching relay is widely used in:
- Power Distribution Units (PDUs) – For load switching and circuit protection
- Smart Energy Meters – Prepaid and postpaid electricity metering systems
- Industrial Automation – Control of heavy machinery and equipment
- Electric Vehicle Charging – DC charging station components
- Renewable Energy Systems – Solar and wind power distribution
- Telecommunications – Power backup and distribution systems
- Building Automation – Centralized power control systems
- Transportation Systems – Railway and marine power distribution
Why Choose Our 120A Magnetic Latching Relay?
Manufactured by Mingni Tech, a certified company (ISO9001, ISO/TS16949, ISO14001, OHSAS18001, IECQ QC 080000), the TL919-120A relay combines high-current handling capacity with energy-efficient operation. Its magnetic latching design ensures stable state retention without continuous power consumption, while the robust construction guarantees reliable performance even in harsh environments.
