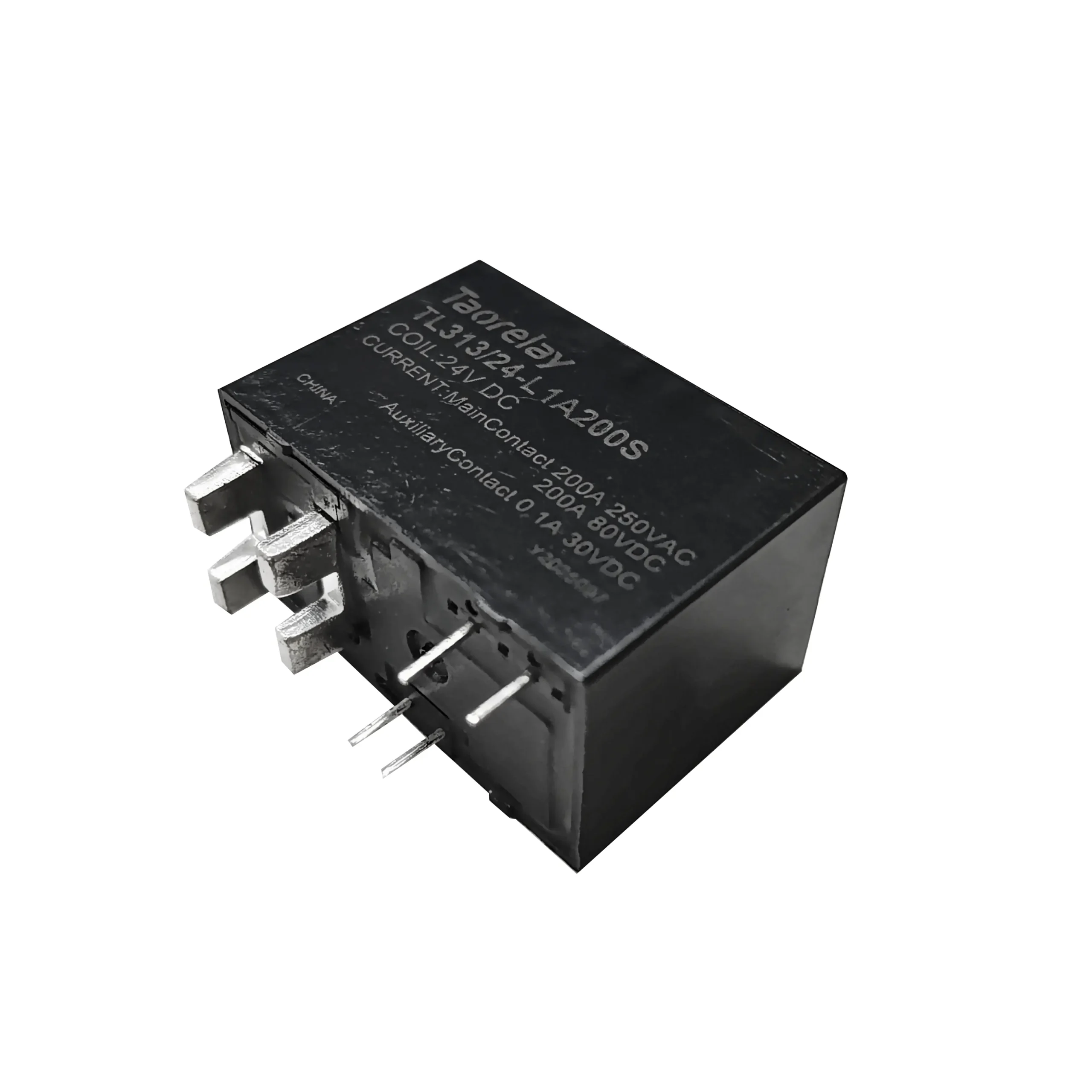

TL313-200A Magnetic Latching Relay

Key Features

• 200A contact rating with arc extinguishing technology
• Low power pulse drive for energy efficiency
• Available in single-coil and dual-coil configurations
• 4KV dielectric strength between contact and coil
• Compliant with RoHS and CE certified
• Compact size: 39.4mm × 22mm × 27.5mm

Applications of 200A Magnetic Latching Relay

Ideal for use in smart meters, industrial control, solar energy systems, and energy management equipment.

Specifications

• Rated Current: 200A
• Rated Voltage: 200VAC / 60VDC
• Max Switching Current: 250A
• Max Switching Voltage: 380VAC
• Max Switching Power: 40,000VA
• Contact Resistance: ≤5mΩ
• Dielectric Strength: 4KV (contact to coil), 1.8KV (between contacts)
• Insulation Resistance: ≥1000MΩ (DC500V)
• Contact Material: Silver alloy
• Pulse Width: ≥50ms
• Operate / Release Time: ≤20ms
• Operating Temperature: -40℃ to +85℃
• Humidity: 5%–85% RH
• Mechanical Life: 300,000 cycles
• Electrical Life: 3,000–10,000 cycles (depending on load)
• Shock Resistance: 100G
• Vibration Resistance: 10G
