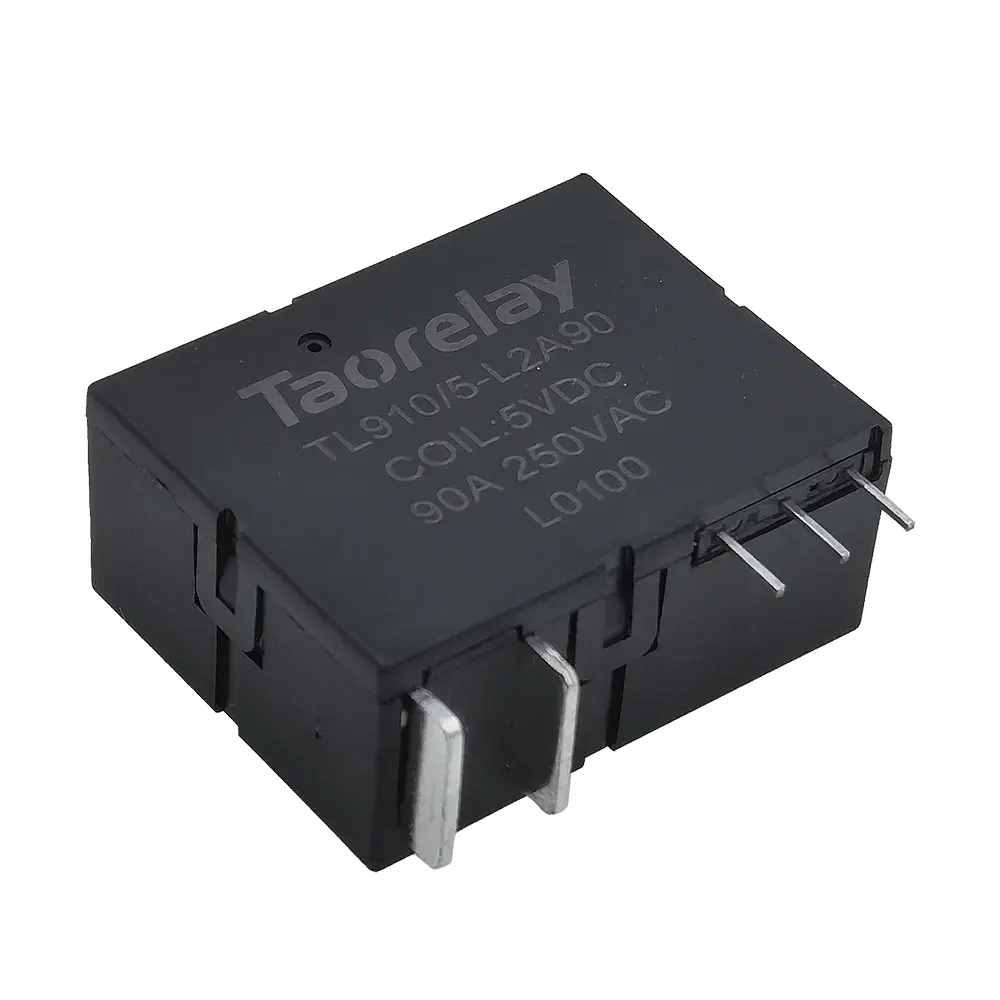

90A 250V AC Magnetic Latching Relay TL910-90A is a high-performance magnetic latching relay with a rated load of 90A. Designed by Mingni Tech for energy-efficient and reliable switching in high-current AC circuits, it features magnetic arc extinguishing technology and pulse-driven actuation.
Key Features
- Rated load: 90A at 250V AC
- Pulse-driven magnetic latching design – low power consumption
- Single-coil and double-coil configurations available
- Magnetic arc extinguishing for safe and durable operation
- High insulation: 4000V between coil and contacts
- Compact dimensions: 38mm × 30mm × 16.5mm
- RoHS & CE certified, compliant with IEC62055-31 UC3

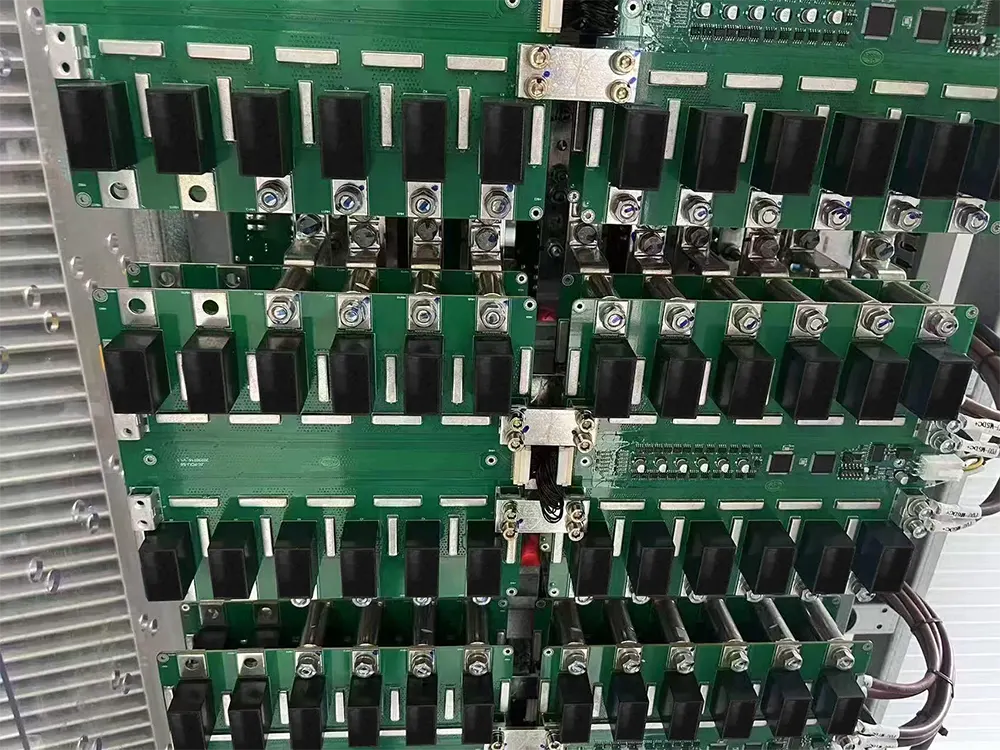

Applications
- Smart energy meters
- Electric vehicle (EV) charging stations
- Industrial power control systems
- Power modules and utility equipment
Specifications of 90A 250V AC Magnetic Latching Relay
| Model | TL910-90A |
|---|---|
| Rated Load | 90A 250V AC |
| Contact Material | Silver alloy |
| Max Switching Power | 22,500 VA |
| Max Switching Voltage | 440VAC / 110VDC |
| Contact Resistance | ≤1.5 mΩ (at 12VDC, 1A) |
| Electrical Life | 90A 250VAC: 3,000 cycles |
| Mechanical Life | 300,000 operations |
| Dielectric Strength | Contact to coil: AC 4000V, 1 min Between contacts: AC 1800V, 1 min |
| Insulation Resistance | ≥1000 MΩ (500V DC) |
| Vibration Resistance | 10–55Hz, double amplitude 1.5mm |
| Shock Resistance | Misoperation: 10G min Endurance: 100G min |
| Ambient Temperature | -40°C to +70°C |
| Humidity | 5%–85% RH |
Coil Parameters
| Coil Voltage Options (VDC) | 5, 6, 9, 12, 24 |
|---|---|
| Coil Types | Single-coil (L1), Double-coil (L2) |
| Pulse Width | ≥50 ms |
| Rated Power | Single-coil: ~12W Double-coil: ~24W |
Certifications
- ISO9001, ISO/TS16949, ISO14001
- OHSAS18001, IECQ QC 080000
- RoHS Compliant
- CE Certified
For datasheets, samples, or volume pricing inquiries, please contact us.
