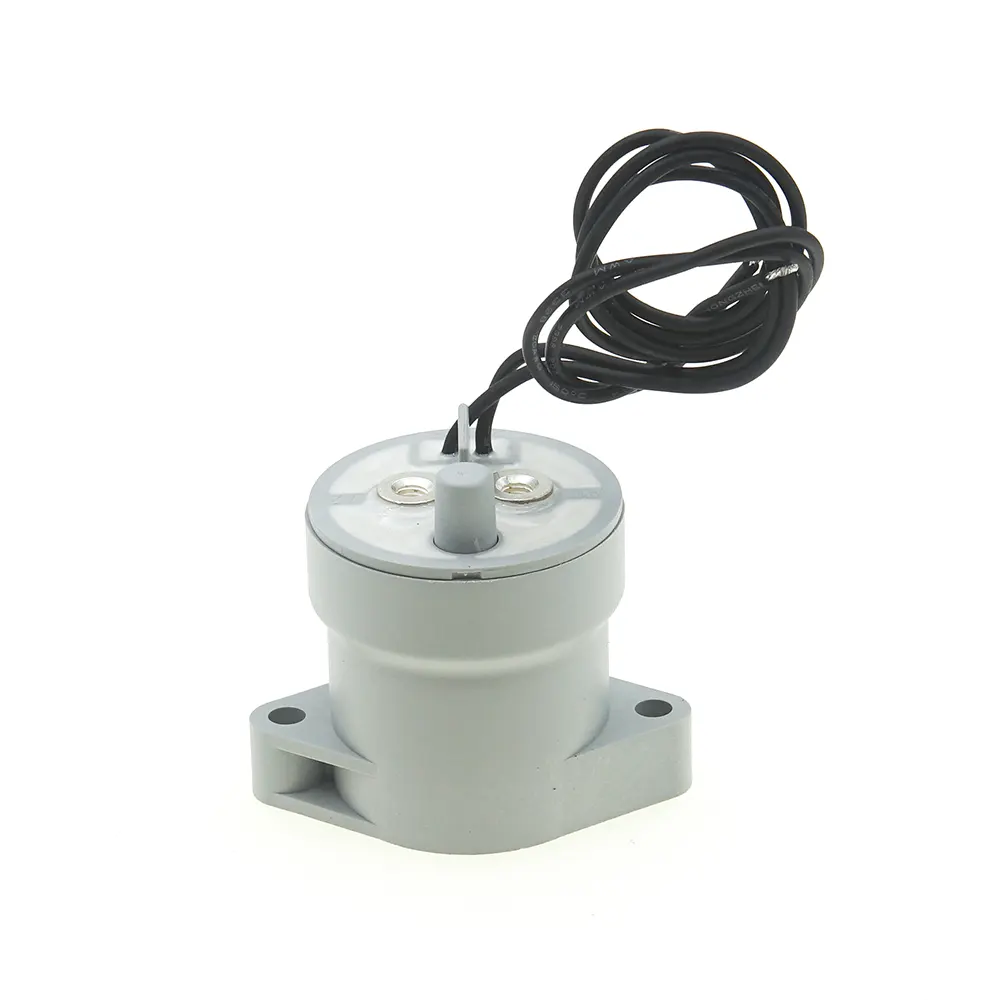

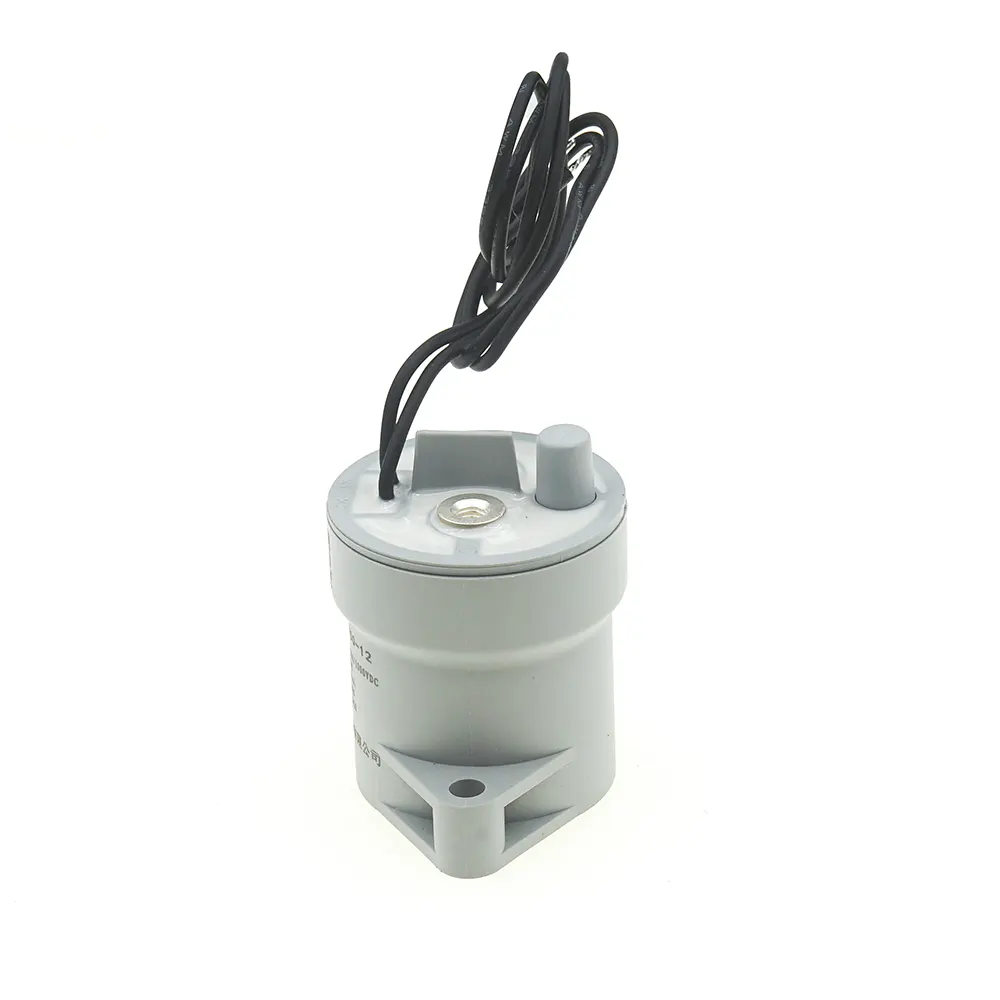

Product Overview
Product Features
- 48VDC coil with 4.0W low power consumption
- Handles up to 50A of current
- Switching capability up to 1000VDC
- Silver-plated copper contacts for low resistance and high reliability
- Insulation resistance ≥1000 MΩ
- Fast switching: Operate time ≤30ms, Release time ≤10ms
- Strong vibration and shock resistance
- Designed for energy storage, EV charging, and relay for high voltage switching
- Compliant with RoHS standards
Technical Specifications of relay for high voltage
| Parameter | Value |
|---|---|
| Coil Voltage | 48VDC |
| Pick-up Voltage | ≤36V |
| Drop-out Voltage | ≥4V |
| Coil Resistance | 576Ω ±10% |
| Coil Power | 4.0W |
| Rated Current | 50A |
| Max Switching Voltage | 1000VDC |
| Contact Resistance | ≤2.0 mΩ |
| Contact Material | Silver-plated Copper |
Quick Specs

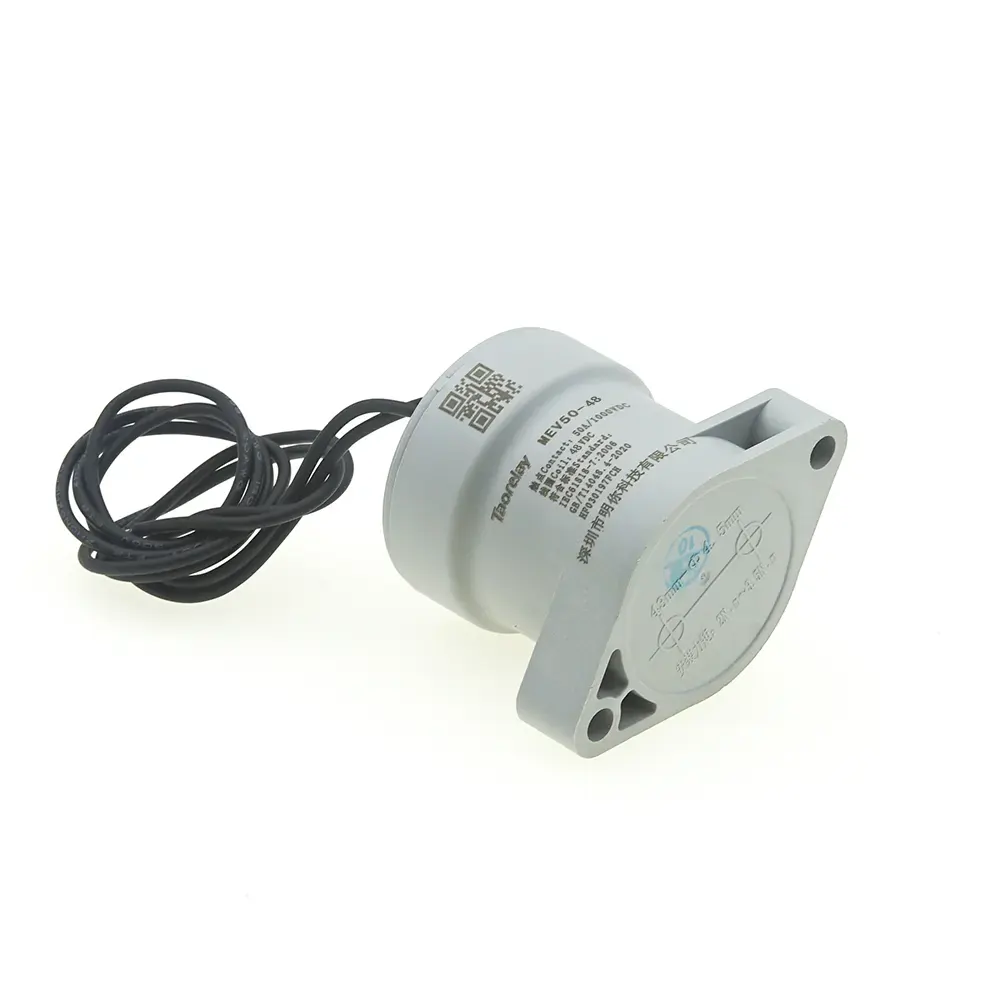

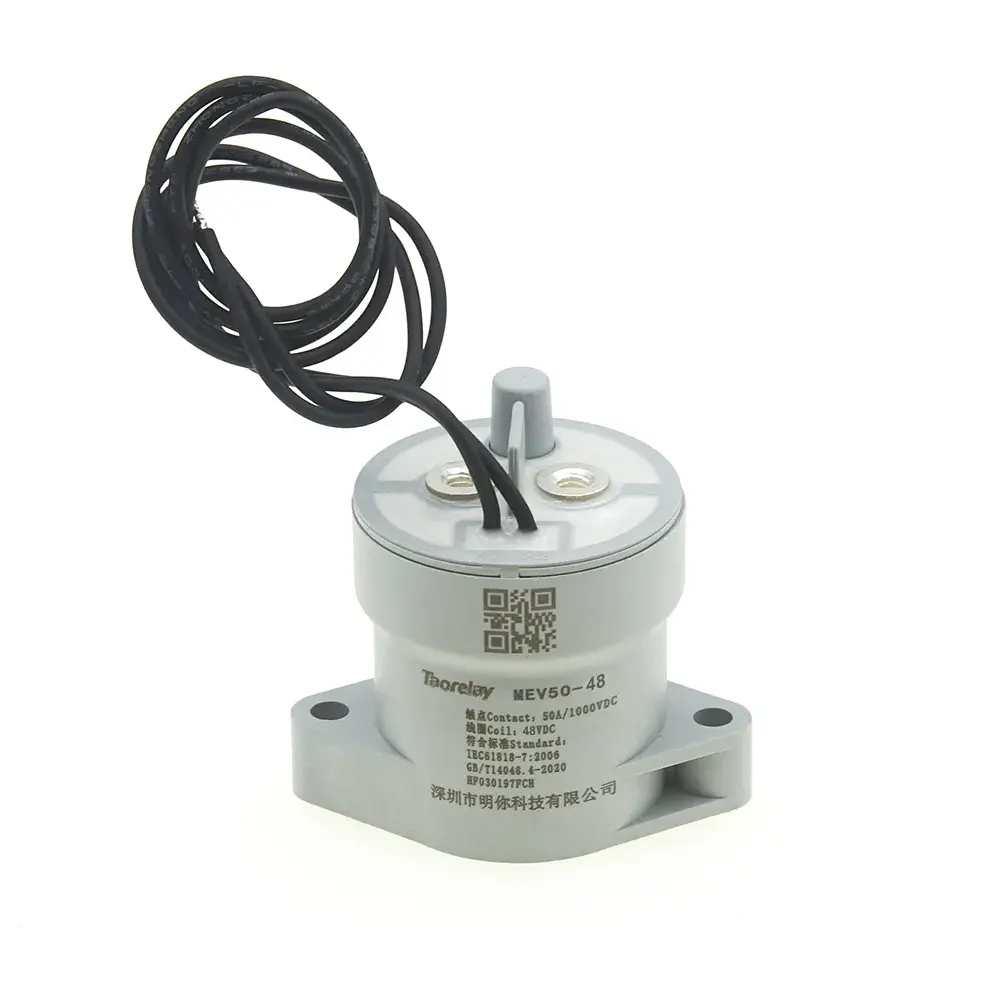

- Model: MEV50-48
- Coil Voltage: 48VDC
- Rated Current: 50A
- Max Contact Voltage: 1000VDC
- Contact Resistance: ≤2.0 mΩ
- Insulation Resistance: ≥1000 MΩ
- Operate Time: ≤30ms
- Release Time: ≤10ms
- Mechanical Life: 200,000 cycles
Applications
- Relay for high voltage battery management systems
- EV charging pile relay systems
- DC switching in solar and wind power systems

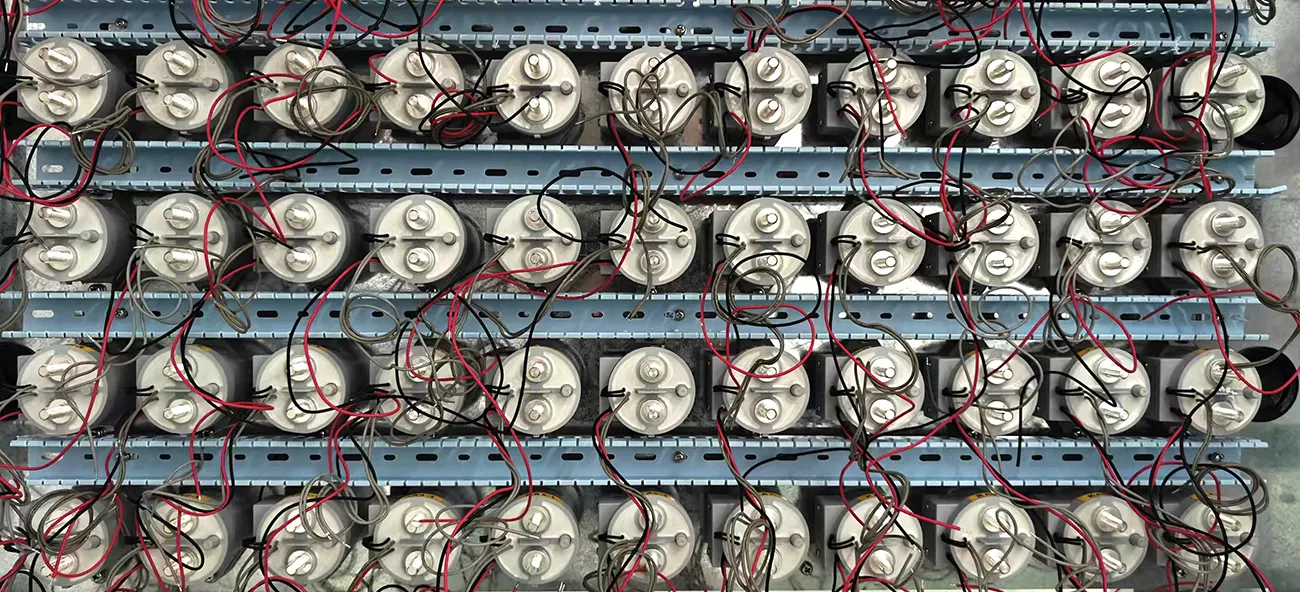

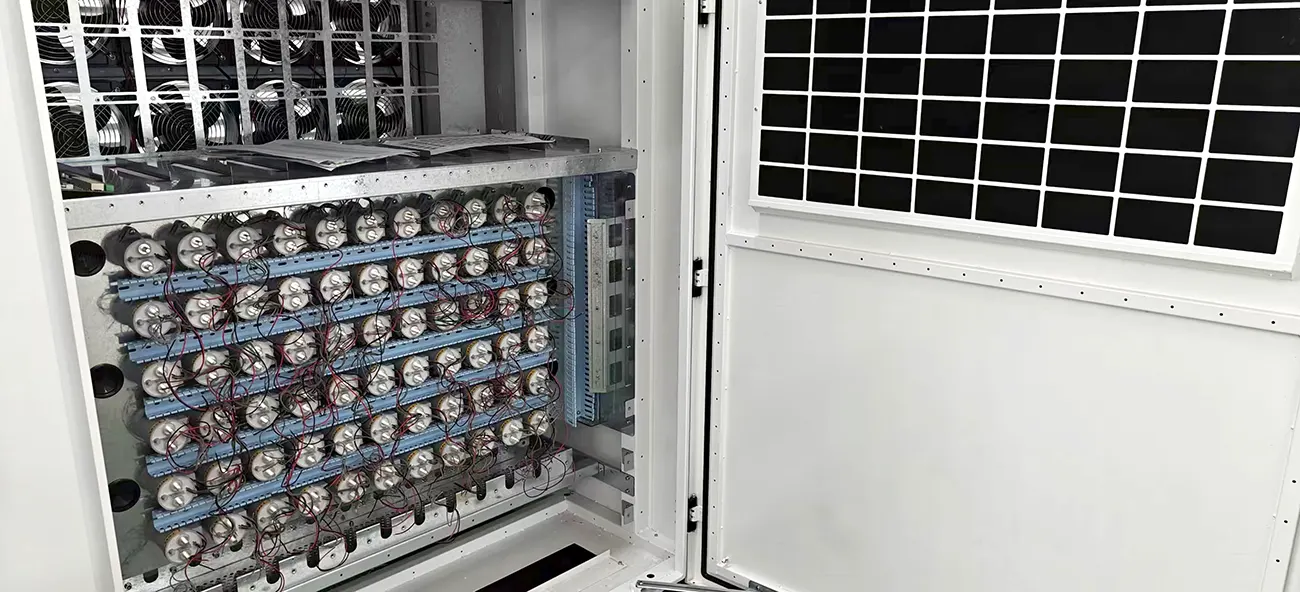

- Energy storage cabinets and smart grid modules
- High voltage DC contactor systems
- Electric vehicles and hybrid vehicles
- DC industrial power distribution
- Charging stations and converters
- UPS and telecom DC equipment
