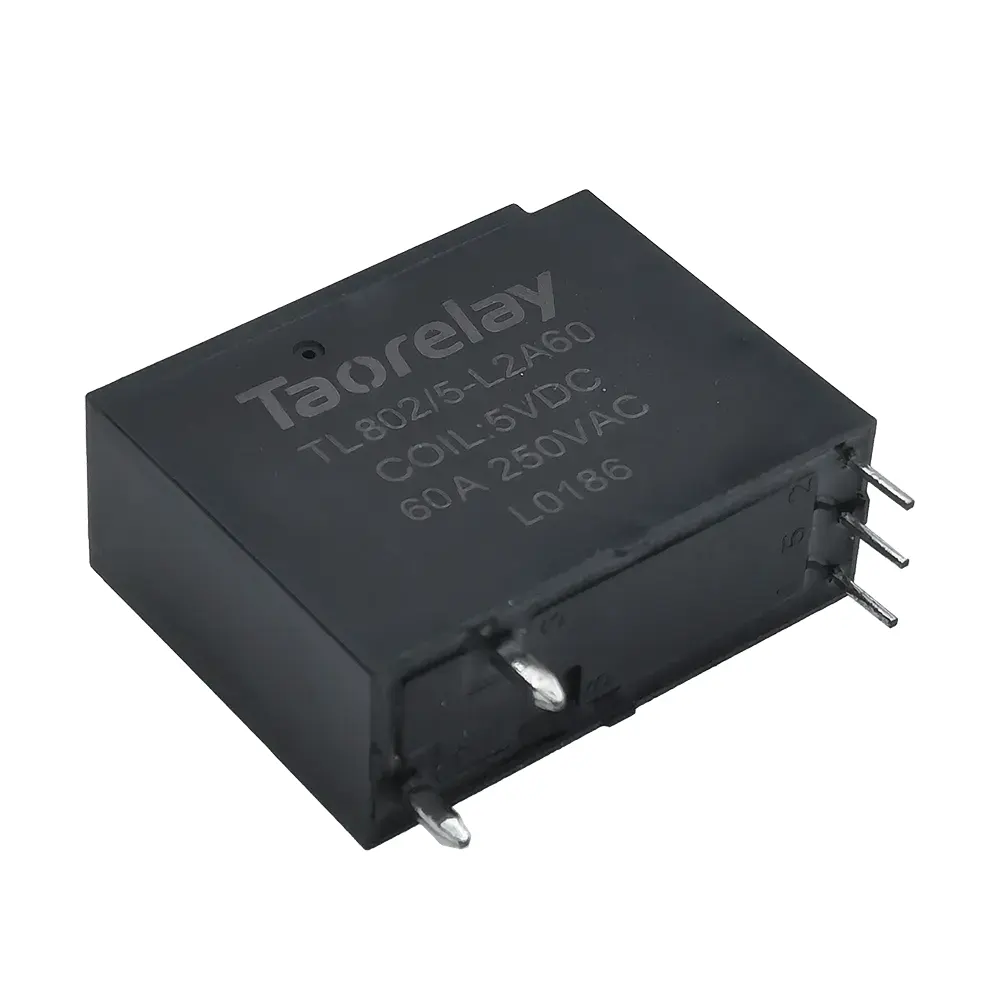

Product Overview
Key Features:
- High Current Capacity: 60A rated load (250VAC), 50A for extended life (10,000 operations)
- 12V DC Coil Option: Available with 12VDC coil (72Ω resistance)
- Compact Size: Only 39mm × 30mm × 15mm dimensions
- Dual Coil Option: Available in both single coil (L1) and double coil (L2) configurations
- Robust Construction: Strong impact resistance (100G min) and vibration resistance (10-55Hz)
- Long Lifespan: Up to 100,000 operations at 18A, 3,000 at 60A 250VAC
- High Voltage Isolation: 4KV withstand between contact and coil
- Certified: CE, RoHS, IEC62055-31 UC3 compliant
Technical Specifications
Electrical Characteristics of 60 Amp 12V Relay
| Parameter | Value |
|---|---|
| Rated Load | 60A 250VAC / 60A 60VDC |
| Maximum Switching Current | 60A |
| Maximum Switching Voltage | 440VAC/110VDC |
| Maximum Switching Power | 12,500VA |
| Contact Resistance | 2mΩ Max (12VDC 1A) |
| Insulation Resistance | 1,000MΩ Min (DC500V) |
| Dielectric Withstand Voltage | AC1,500V; AC4,000V (50/60Hz 1min) |
Coil Parameters (12V DC Standard Type)
| Parameter | Single Coil | Double Coil |
|---|---|---|
| Rated Voltage | 12VDC ±10% | |
| Coil Resistance | 72Ω ±10% | 36Ω ×2 ±10% |
| Action/Reset Voltage Max | 70% of rated voltage | |
| Pulse Width | 50ms | |
| Rated Power | 12W | 24W |
Mechanical & Environmental
| Operate Time | 20ms Max |
| Release Time | 20ms Max |
| Creepage Distance | 10mm |
| Vibration Resistance | 10~55Hz, 1.5mm |
| Impact Resistance | 100G min |
| Ambient Temperature | -40°C to +70°C |
| Humidity | 5%~85% RH |
Typical Applications
The TL802-60A 50 Amp 12V relay is ideal for:
- Automotive power systems
- Heavy-duty truck electrical systems
- Industrial equipment control
- Power distribution systems
- High-current switching applications
- Battery management systems
- Solar power systems
- Electric vehicle components
Ordering Information
Model: TL802 / 12 – L1 A 60
Decoding:
- TL802 – Product series (high power)
- 12 – Coil voltage (12VDC)
- L1 – Coil form (L1 single coil, L2 dual coil)
- A – Contact form (A-top, B-bottom)
- 60 – Rated current 60A
- (XXX) – Customer-specific coding (if applicable)
Certifications & Compliance
- RoHS compliant
- IEC62055-31 UC3
- CE certified
- ISO9001, ISO/TS16949, ISO14001, OHSAS18001, IECQ QC 080000
