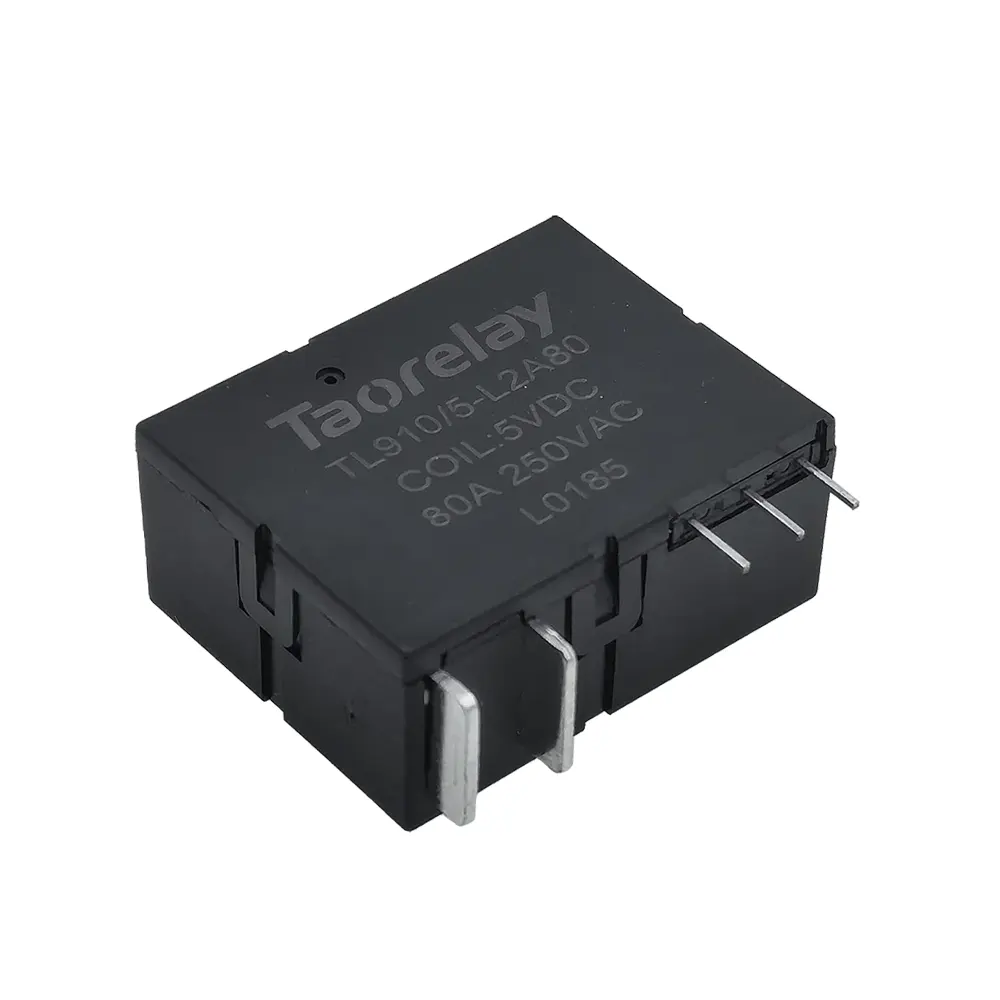

The 80A 250VAC Relay TL910 is a magnetic latching relay designed By Mingni Tech for high current switching applications.
It features a rated load of 80A at 250VAC, magnetic arc extinguishing technology, and low power pulse drive.
This environmentally friendly product complies with RoHS and CE certifications and is ideal for smart meters, EV charging stations, power modules, and industrial control equipment.
Key Features
- Rated Load: 80A 250VAC
- Magnetic arc extinguishing technology for reliable performance
- Low coil power consumption with pulse drive
- High impact resistance and long mechanical life
- Available in single-coil and dual-coil versions
- Dielectric withstand voltage: 4,000V between contact and coil
- Complies with IEC62055-31 UC3, RoHS, and CE standards
Electrical Specifications of 80A 250VAC Relay
| Parameter | Value |
|---|---|
| Rated Load | 80A 250VAC |
| Max Switching Voltage | 440VAC / 110VDC |
| Max Switching Power | 15,000VA |
| Contact Resistance | 1.5 mΩ Max (12VDC 1A) |
| Dielectric Strength | 4000VAC (Contact-Coil), 1500VAC (Contact-Contact) |
| Insulation Resistance | ≥ 1000 MΩ (500VDC) |
| Coil Voltage Options | 5V, 6V, 9V, 12V, 24V DC |
| Coil Power | Single coil: ~12W, Double coil: ~24W |
| Pulse Width | ≥ 50ms |
Mechanical and Environmental
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Humidity | 5%–85% RH |
| Shock Resistance | 100G min (durability), 10G min (misoperation) |
| Vibration Resistance | 10–55Hz, double amplitude 1.5mm |
| Electrical Life | 60A 250VAC – 3,000 cycles |
| Mechanical Life | 300,000 cycles |
| Dimensions | 38mm × 30mm × 16.5mm |
Typical Applications
- Smart Electric Meters
- EV Charging Station Control Boards
- Power Distribution Modules
- Industrial Power Control
Download
Download TL910-80A Datasheet (PDF)
