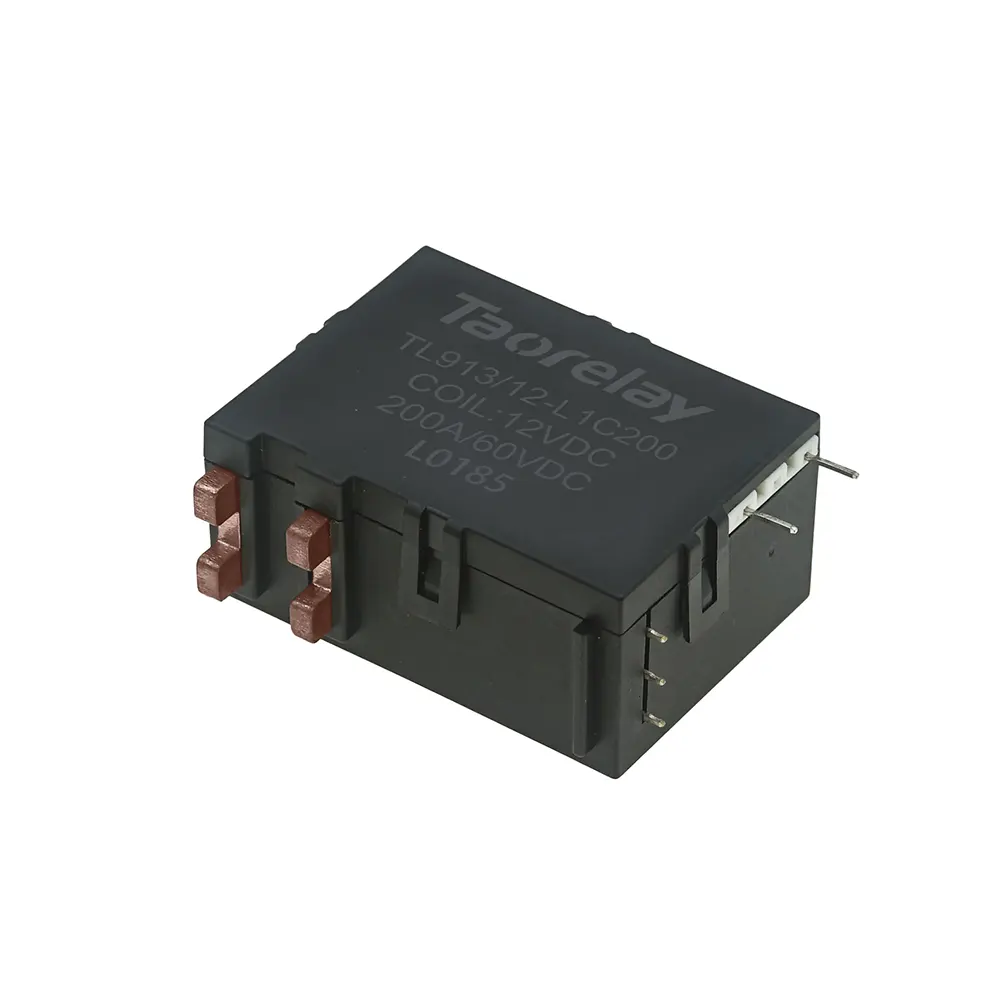

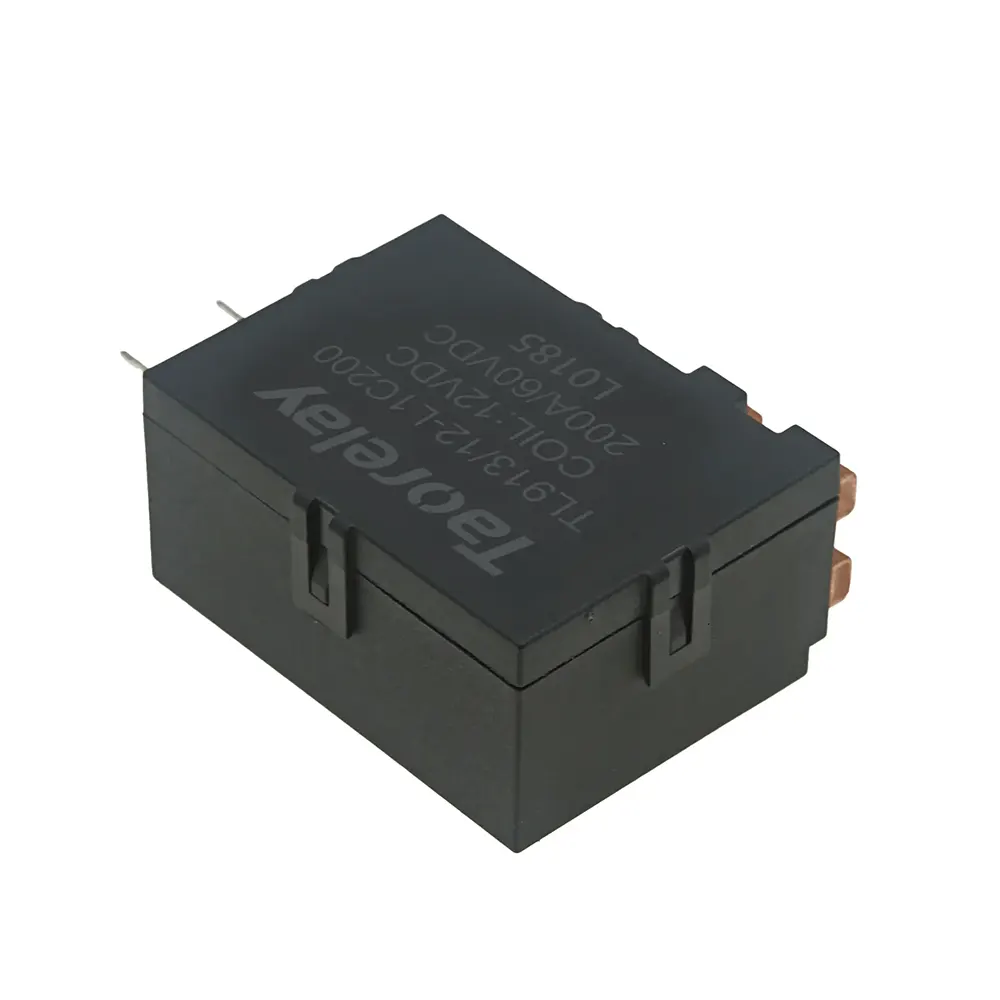

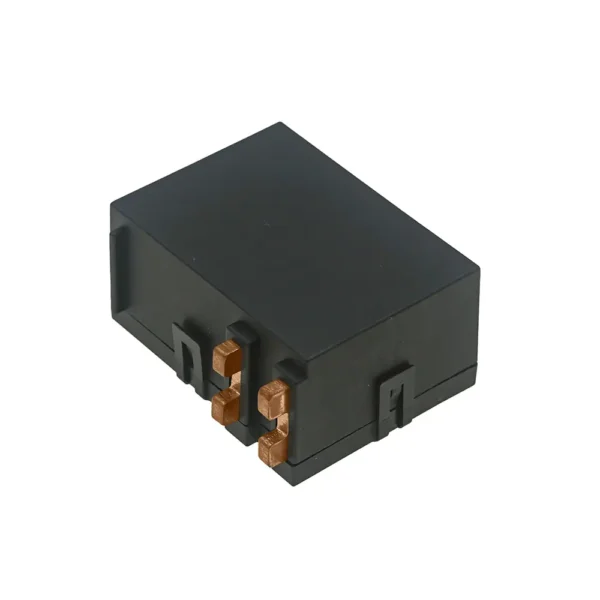

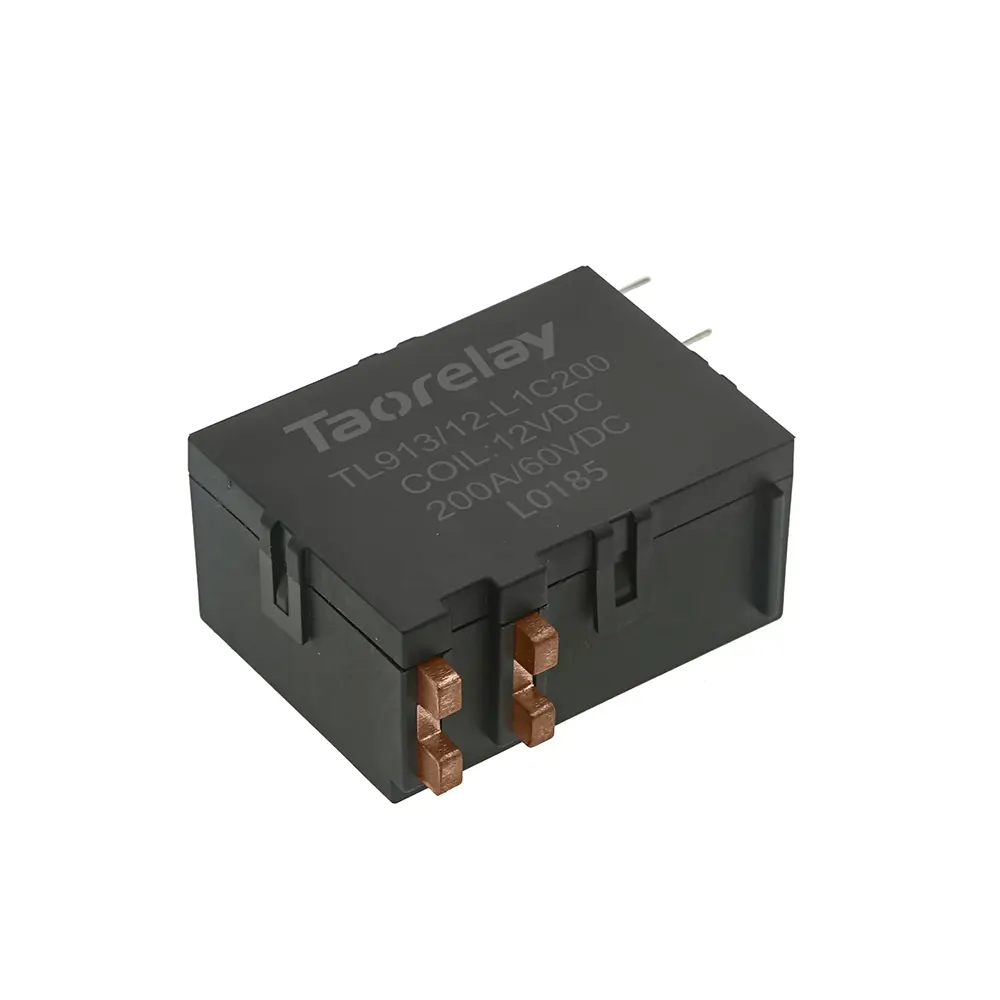

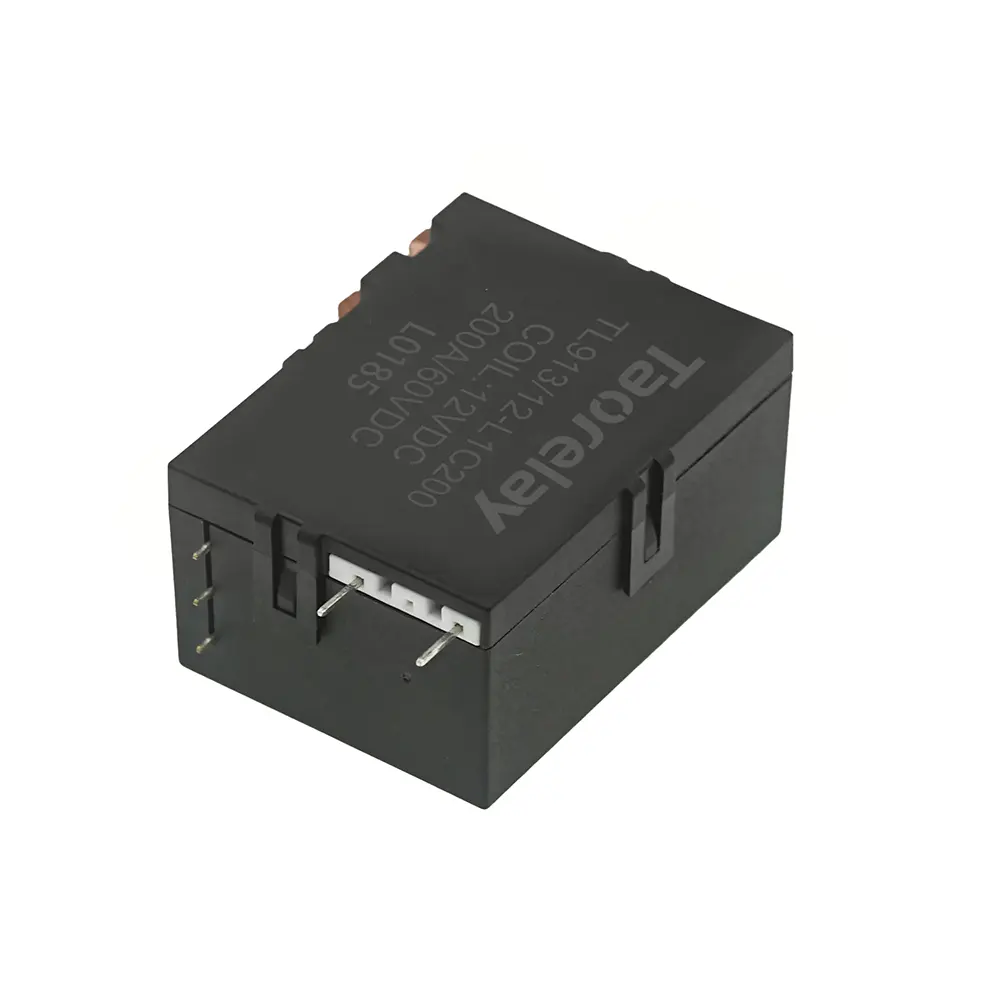

Product Introduction
The TL913-200 Automotive charging Magnetic latching relay is designed by Mingni Tech, it is a high-performance power component designed for applications requiring exceptional current handling capabilities. With a rated current capacity of 200A at 250VAC and maximum switching voltage of 2770VAC (60VDC), this power relay delivers robust performance in demanding electrical environments. Its unique bistable relay design maintains contact position without continuous power consumption, making it ideal for energy-sensitive systems.
Engineered for reliability, the TL913-200 features a latching relay mechanism that requires only a brief pulse to switch states, significantly reducing power consumption compared to traditional relays. This dc relay supports both single and dual coil configurations, offering design flexibility for various control schemes. With an impressive 4KV isolation between contacts and coil, this relay switch ensures safe operation in high-voltage applications.
The TL913-200 Automotive charging Magnetic latching relay excels as a charging relay in EV charging stations and serves as a reliable automotive relay in vehicle power systems. Its robust construction makes it an excellent choice as a relay for motor protection in industrial settings. Compliant with IEC62055-31 UC3 and RoHS environmental standards, this high current relay combines performance, safety, and eco-friendly design.
Key Features
- High Current Capacity: 200A continuous current rating with 250VAC/60VDC switching capability for demanding power applications.
- Pulse Drive Operation: Energy-efficient design requiring only brief pulses (≥50ms) to switch states, minimizing power consumption.
- Enhanced Safety: 4,000V isolation between contacts and coils with 8mm creepage distance for reliable operation in high-voltage environments.
- Magnetic Latching: Bistable mechanism maintains position without power, eliminating coil heating and reducing energy waste.
- Robust Construction: Withstands 100G mechanical shock and vibration (10-55Hz, 1.5mm amplitude) for industrial durability.
- Eco-Friendly Design: RoHS compliant with silver alloy contacts for reliable switching and environmental responsibility.
Technical Specifications of TL913-200 Automotive charging Magnetic latching relay
| Parameter | Value | Unit/Condition |
|---|---|---|
| Rated Load | 200A | 250VAC |
| Max Switching Current | 200A | – |
| Max Switching Voltage | 2770VAC, 60VDC | – |
| Contact Material | Silver Alloy | – |
| Contact Resistance | ≤1mΩ | Max |
| Operate/Release Time | ≤20ms | Max |
| Insulation Resistance | ≥1,000MΩ | DC500V |
| Dielectric Strength | 3,000V (contact-contact) 4,000V (contact-coil) |
AC 50/60Hz 1min |
| Mechanical Life | 100,000 cycles | 1,800 cycles/hour |
| Electrical Life | 6,000 cycles (150A 250VAC) 300 cycles (200A 250VDC) |
360 cycles/hour |
| Ambient Temperature | -40℃ to +85℃ | – |
| Humidity | 5% to 85% | RH |
| Dimensions | 47.2 × 34.6 × 22.1 | mm |
Key Parameters
- Rated Voltage: 6, 9, 12, 24VDC
- Max Switching Current: 200A
- Max Switching Voltage: 2770VAC/60VDC
- Temp Range: -40℃ to +85℃
- Mechanical Life: 100,000 cycles
- Power Consumption: ≈2.4W (single coil)
- Dimensions: 47.2×34.6×22.1mm
- Coil Options: Single or dual coil
- Standards: IEC62055-31 UC3, RoHS
Application Areas

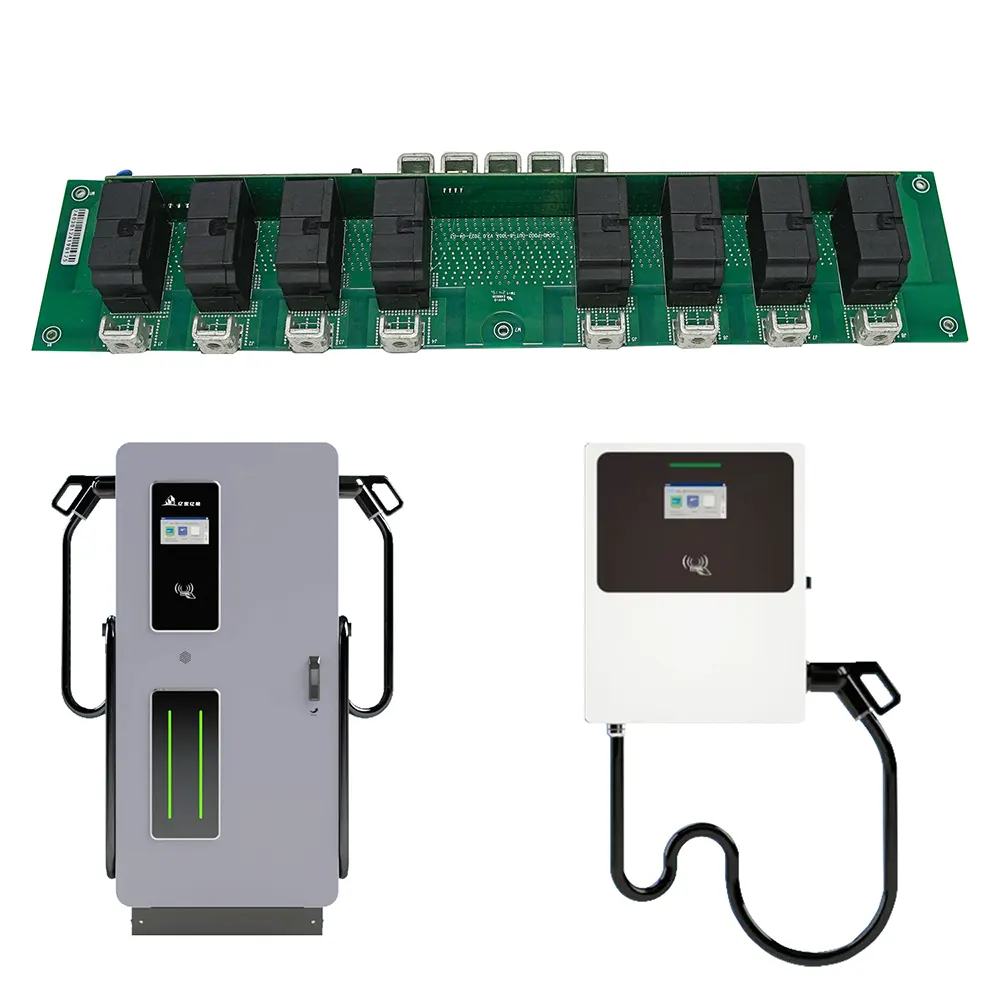

- EV Charging Systems: As a high-current charging relay in charging piles and stations, handling main power switching.
- Automotive Power: Main power distribution automotive relay in electric vehicles and charging infrastructure.
- Smart Metering: Energy-efficient switching solution for smart electricity meters with remote control capabilities.
- Motor Protection: As a reliable relay for motor protection in industrial equipment and machinery.
Power Control Systems
Main switching component in power composite switches and electrical remote control systems.
Renewable Energy
Power management in solar inverters and renewable energy distribution systems.
