Product Overview
Product Features
- 24VDC coil voltage with 3.8W power consumption
- Rated current: 50A
- Max switching voltage: 1000VDC
- Silver-plated copper contacts for low resistance
- High contact reliability and insulation
- Fast operate (≤30ms) and release (≤10ms) times
- Resistant to shock and vibration for rugged use
- Excellent choice for high current relay applications
- Designed for EV, charging pile, and energy storage systems
Technical Specifications of high voltage relay switch 24V
| Parameter | Value |
|---|---|
| Coil Voltage | 24VDC |
| Pick-up Voltage | ≤18V |
| Drop-out Voltage | ≥2V |
| Coil Resistance | 152Ω ±10% |
| Coil Power | 3.8W |
| Rated Current | 50A |
| Max Switching Voltage | 1000VDC |
| Contact Resistance | ≤2.0 mΩ |
| Contact Material | Silver-plated Copper |
Quick Specs

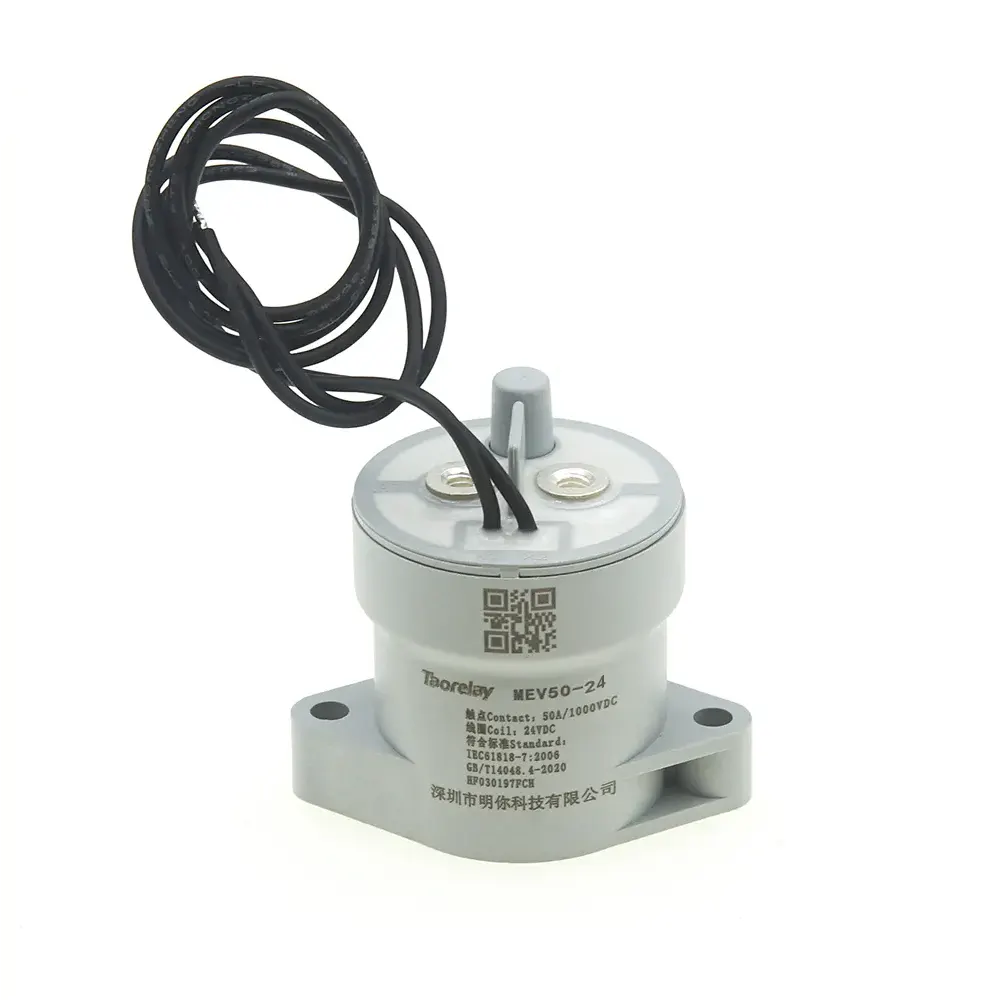

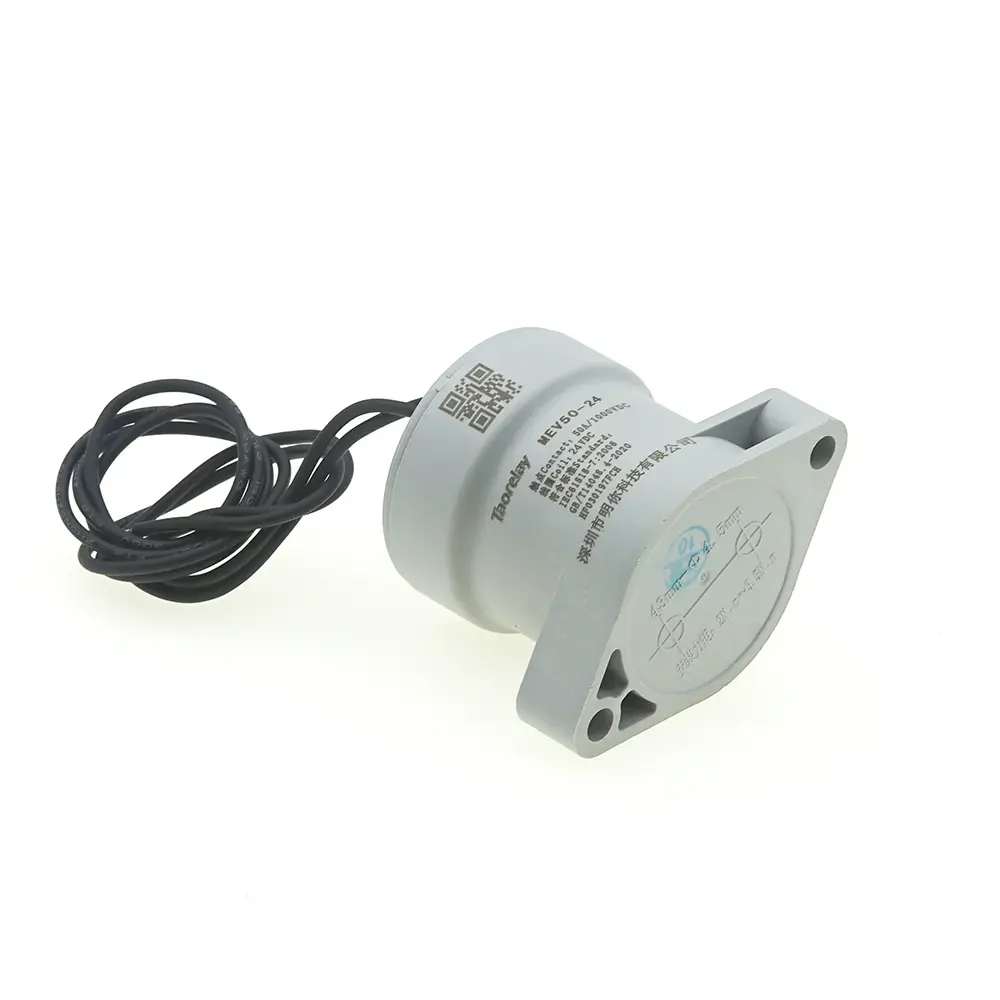

- Model: MEV50-24
- Coil Voltage: 24VDC
- Rated Current: 50A
- Max Contact Voltage: 1000VDC
- Contact Resistance: ≤2.0 mΩ
- Insulation Resistance: ≥1000 MΩ
- Operate Time: ≤30ms
- Release Time: ≤10ms
- Mechanical Life: 200,000 cycles
Applications
- EV Charging Piles
- Charging Station Relay Systems
- Battery Energy Storage
- DC Power Grids
- Solar & Wind Energy Systems
- Industrial Machinery
- UPS and Backup Systems
- Smart Grid Equipment
- High Power DC Switching
