TL313-150 Magnetic Holding Relay 150A | High-performance magnetic latching relay designed for 150A applications
Product Overview

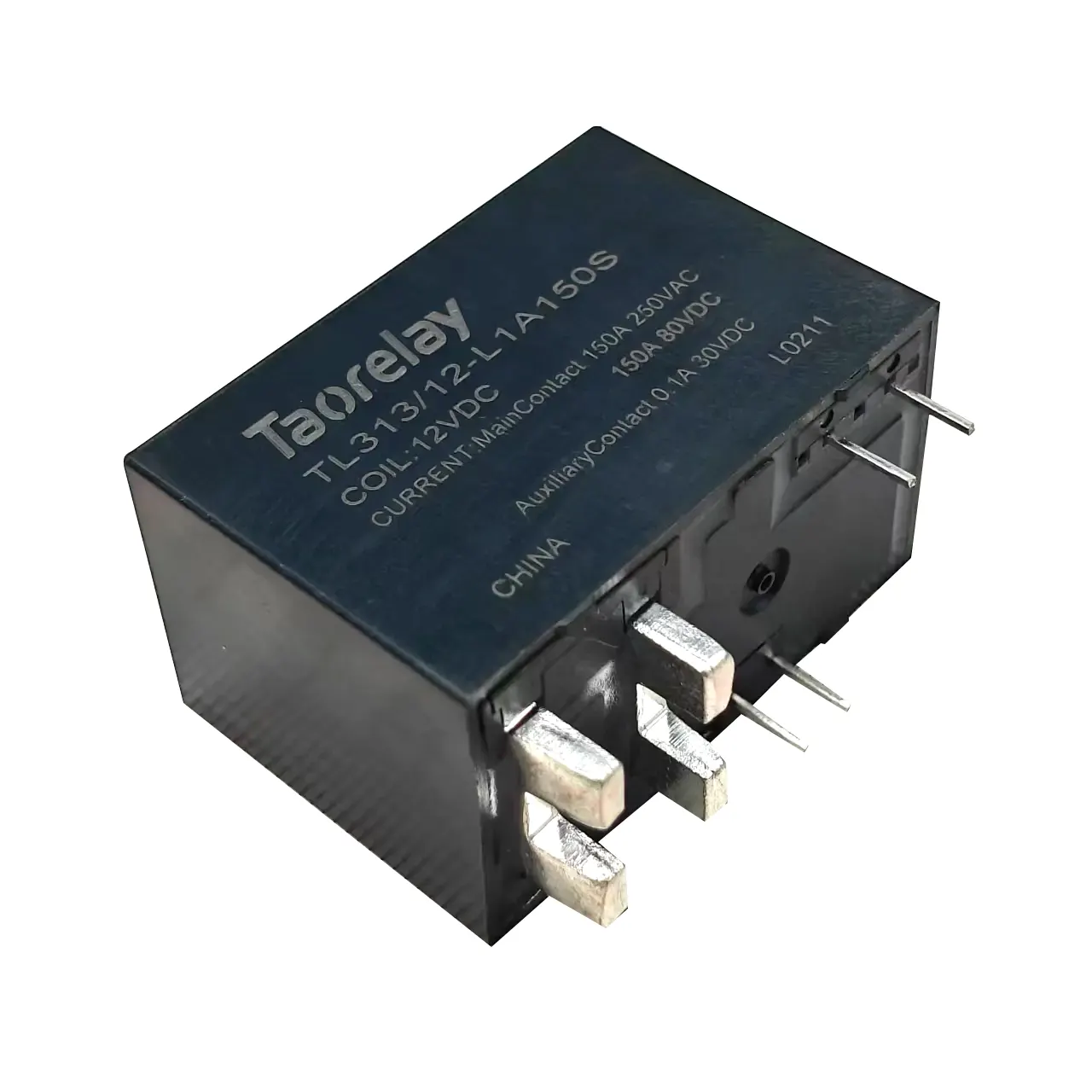

The TL313-150 is a powerful magnetic holding relay rated at 150A, engineered for high-current load control in energy-efficient applications. It features low power consumption, pulse drive capability, and reliable magnetic arc extinguishing technology. Suitable for both single and double coil configurations, this relay is RoHS compliant and CE certified.
Key Features of Magnetic Holding Relay 150A
- Rated current: 150A
- Contact breaking capacity of 150A
- Low power consumption, pulse-driven design
- Magnetic arc extinguishing technology
- High impact resistance and reliable performance
- Available in single or double coil configurations
- Dielectric strength: 4000V between contacts and coil
- Compact dimensions: 39.4mm × 22mm × 27.5mm
- RoHS compliant and CE certified
- Operating temperature range: -40℃ to +85℃
Applications
This magnetic holding relay is ideal for use in electric meters, power distribution systems, and industrial control applications requiring efficient high-current switching.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current | 150A |
| Max Switching Voltage | 380VAC |
| Max Switching Current | 200A |
| Max Switching Power | 30,000VA |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤ 5mΩ |
| Insulation Resistance | ≥ 1,000MΩ @ DC500V |
| Dielectric Strength | 4000V between contact and coil |
| Operating Time | ≤ 20ms |
| Release Time | ≤ 20ms |
| Electrical Life | 150A 250VAC – 3,000 cycles |
| Mechanical Life | 300,000 operations |
| Coil Voltage Options | 6VDC, 9VDC, 12VDC, 24VDC |
| Environmental Compliance | RoHS, CE |
Contact Us
For pricing, availability, or technical support, please contact Shenzhen Mingni Technology Co., Ltd..
