Product Overview
Product Features
- High voltage DC switching up to 1000V
- Rated continuous current: 50A
- Silver-plated copper contacts for excellent conductivity
- Low contact resistance: ≤2.0 mΩ
- 12V coil with low power consumption (3.6W)
- High insulation resistance: ≥1000 MΩ
- Fast operate time ≤30ms, release time ≤10ms
- Robust shock and vibration resistance
- Ideal for charging pile relay and high current switching
Technical Specifications of high voltage dc relay
| Parameter | Value |
|---|---|
| Coil Voltage | 12VDC |
| Pick-up Voltage | ≤9V |
| Drop-out Voltage | ≥1V |
| Coil Resistance | 40Ω ±10% |
| Coil Power | 3.6W |
| Rated Current | 50A |
| Max Switching Voltage | 1000VDC |
| Contact Resistance | ≤2.0 mΩ |
| Contact Material | Silver-plated Copper |
Quick Specs

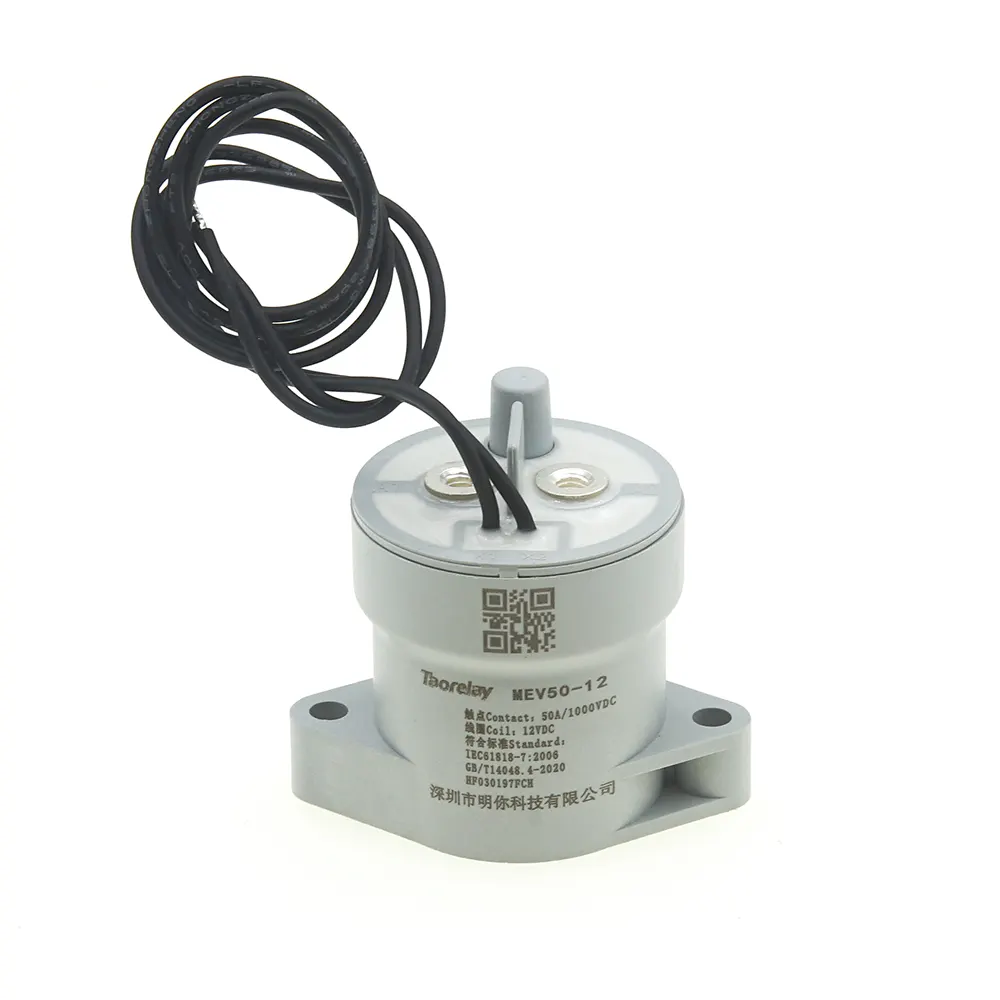

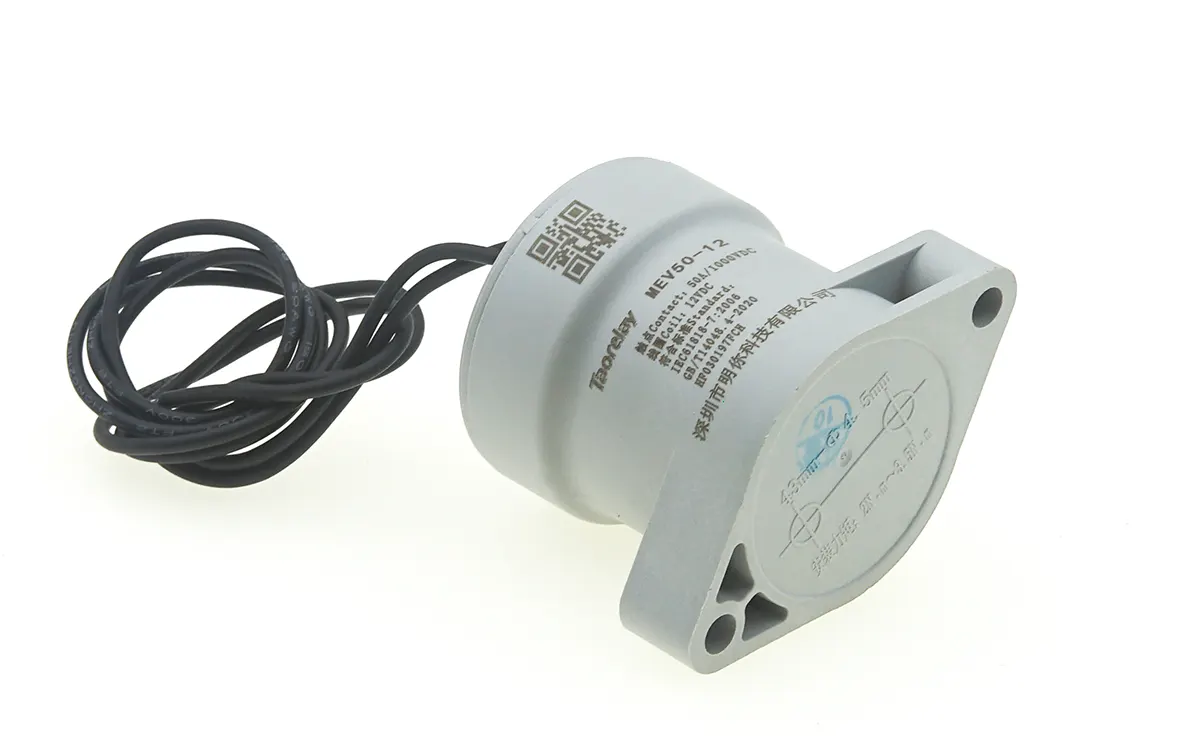

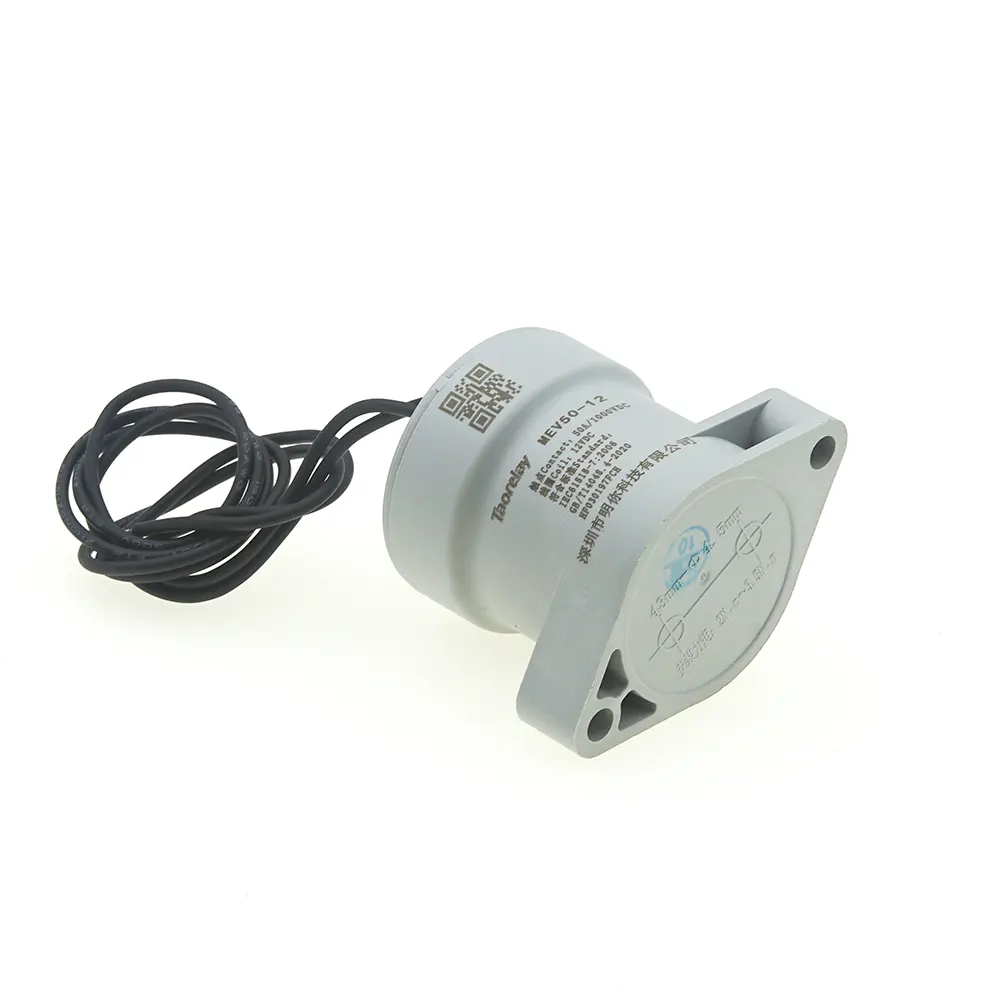

- Model: MEV50-12
- Coil Voltage: 12VDC
- Rated Current: 50A
- Max Contact Voltage: 1000VDC
- Contact Resistance: ≤2.0 mΩ
- Insulation Resistance: ≥1000 MΩ
- Operate Time: ≤30ms
- Release Time: ≤10ms
- Mechanical Life: 200,000 cycles
Applications
- Electric Vehicle Charging Stations
- Charging Pile Relay Systems
- Battery Management Systems
- DC Power Distribution
- Renewable Energy Systems (Solar, Wind)
- Industrial Automation
- Energy Storage Cabinets
- UPS Systems
- High Voltage Relay Switch Networks
