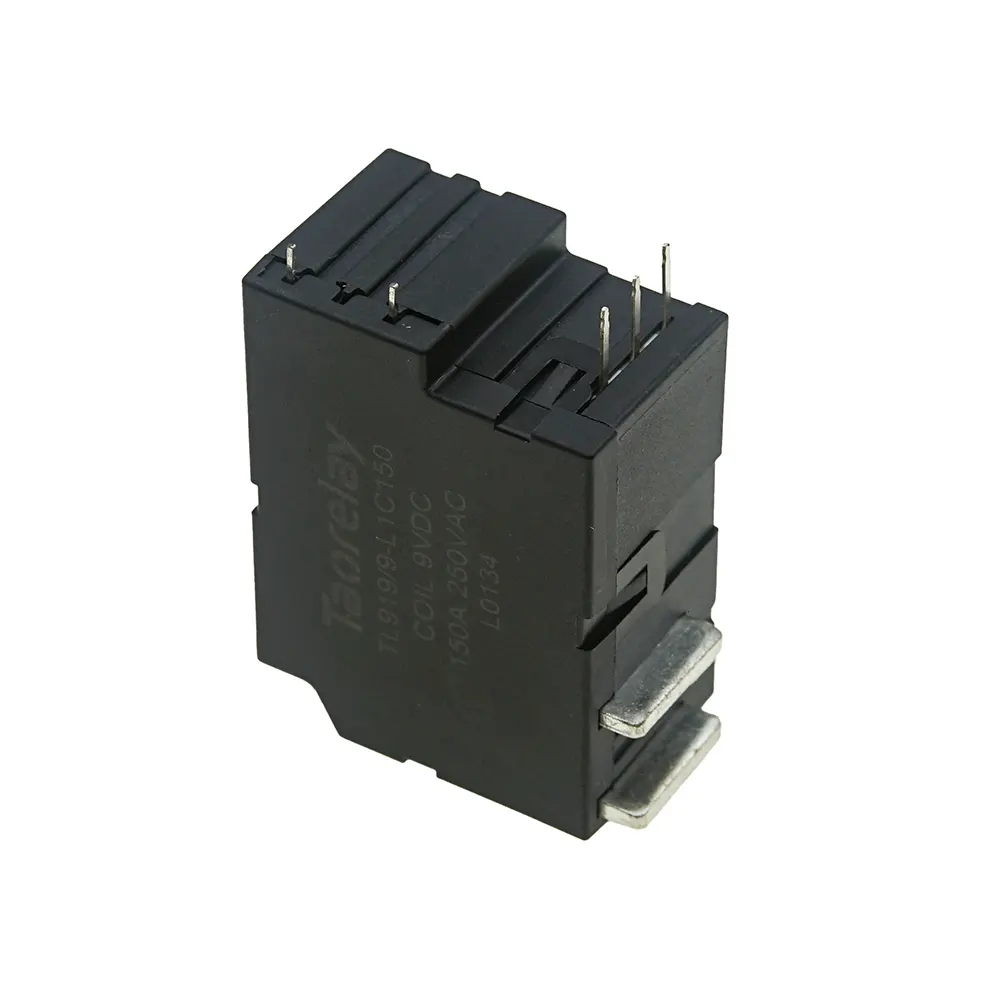

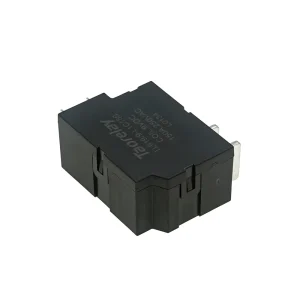

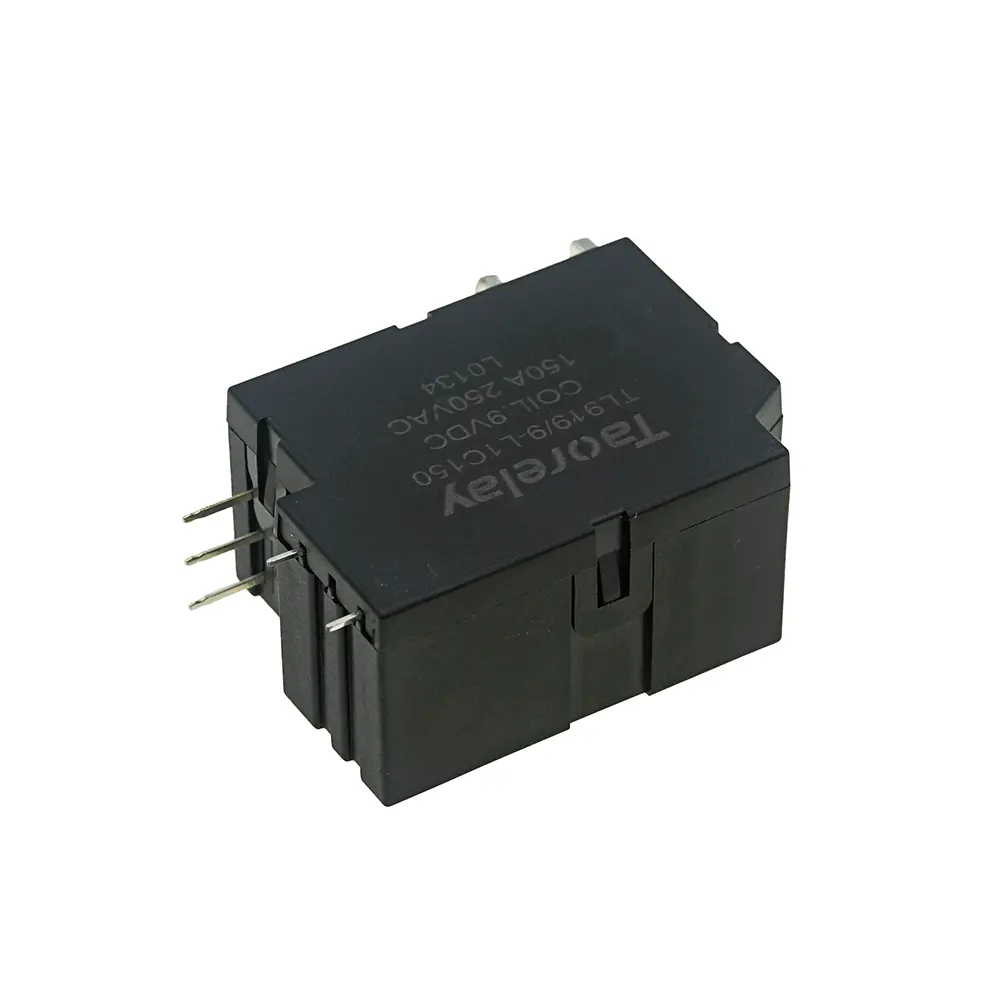

High-Performance 150A Charging Pile Magnetic Latching Relay
- Rated Current: 150A
- Rated Voltage: 250VAC
- Max Switching Voltage: 440VAC
- Coil Voltage Options: 6V, 9V, 12V, 24V DC
- Contact Form: Single or with auxiliary contact
- Operate Time: ≤20ms
- Release Time: ≤20ms
- Insulation: 4kV between contact and coil
Description
The TL919-150A is a high-power magnetic latching relay designed for demanding applications such as electric vehicle charging piles, smart energy management, and industrial control systems. With a rated current of 150A and a maximum switching voltage of 440VAC, this relay ensures robust performance and exceptional reliability. Its pulse drive operation and magnetic arc extinguishing technology make it highly efficient and safe for high-current switching tasks.
The 150A Charging Pile Magnetic Latching Relay is engineered to operate within a wide temperature range of -40°C to +70°C, making it suitable for both indoor and outdoor installations. Its compact design (47.1mm × 34.5mm × 22.45mm) allows for easy integration into various electrical systems. Compliant with IEC62055-31 UC3 and RoHS standards, this relay is a sustainable and certified solution for modern energy infrastructure.
Product Features
- 150A high current switching capability
- Low power consumption with pulse drive operation
- Magnetic arc extinguishing technology for enhanced safety
- Available in single coil and double coil configurations
- 4kV withstand voltage between contact and coil
- Compliant with RoHS and CE certifications
- High impact and vibration resistance
- Long mechanical and electrical lifespan
- Wide operating temperature range (-40°C to +70°C)
Product Specifications of 150A Charging Pile Magnetic Latching Relay TL919
| Parameter | Value |
|---|---|
| Rated Load | 150A 250VAC |
| Max Switching Current | 150A |
| Max Switching Voltage | 440VAC |
| Max Switching Power | 37,500VA |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤1mΩ |
| Operate/Release Time | ≤20ms |
| Insulation Resistance | ≥1,000MΩ (DC500V) |
| Dielectric Strength (Contact to Coil) | AC4,000V 50/60Hz 1min |
| Ambient Temperature | -40°C to +70°C |
| Humidity | 5% to 85% RH |
Key Parameters
- Rated Current: 150A
- Rated Voltage: 250VAC
- Max Switching Voltage: 440VAC
- Coil Voltage Options: 6V, 9V, 12V, 24V DC
- Contact Form: Single or with auxiliary contact
- Operate Time: ≤20ms
- Release Time: ≤20ms
- Insulation: 4kV between contact and coil
- Lifespan: 300,000 mechanical operations; 3,000 electrical operations at 150A 250VAC
Application Fields
The 150A Charging Pile Magnetic Latching Relay is ideal for use in:
- Electric Vehicle (EV) Charging Stations
- Power Distribution Units (PDUs)
- Energy Storage Systems
- Smart Meters and Energy Management Systems
- Industrial Automation and Control
- Renewable Energy Systems
