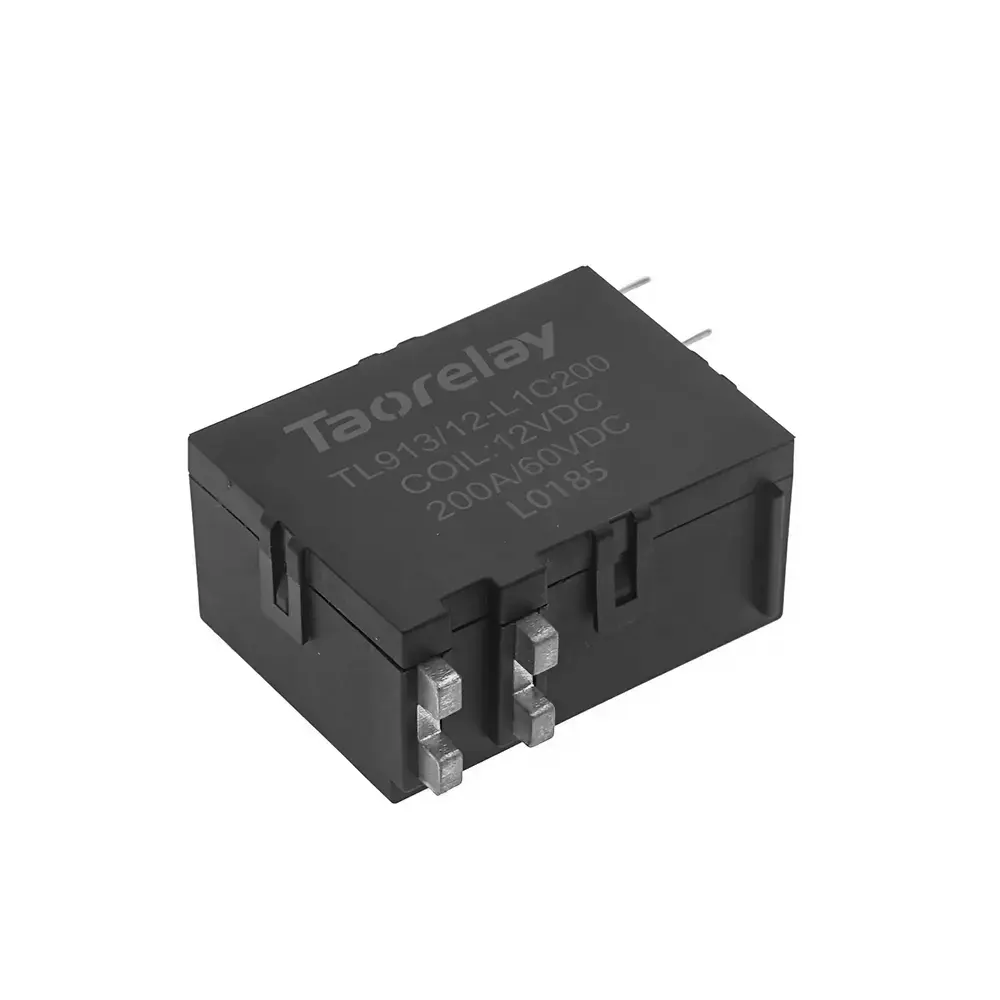

TL913-200 Series: High-Performance 200A Electromagnetic Latching Relay
- Rated Current: 200A
- Max Switching Voltage: 2770VAC / 60VDC
- Contact Configuration: SPST (Form A, B, or C available)
- Coil Voltage Options (VDC): 6, 9, 12, 24
- Coil Types: Single Coil or Dual Coil
- Operate Power: Approx. 2.4W (Single Coil), 4.8W (Dual Coil)
- Insulation: 4kV between coil and contacts
- Operate/Release Pulse Width: ≥50ms
Product Overview
Key Features
- High 200A current carrying capacity for demanding applications.
- Low power consumption, operates on a simple pulse drive.
- Forced contact design ensures high reliability and shock resistance.
- High dielectric strength: 4kV between coil and contacts.
- Available in both single-coil and dual-coil versions for design flexibility.
- Magnetic latching function maintains state without power.
- Environmentally friendly product, fully compliant with RoHS standards.
- Complies with IEC62055-31 UC3 requirements for electricity metering.
- Compact dimensions: 47.2mm x 34.6mm x 22.1mm.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TL913 |
| Rated Load | 150A 250VAC / 60VDC; 200A 250VAC |
| Max. Switching Current | 200A |
| Max. Switching Voltage | 2770VAC, 60VDC |
| Max. Switching Power | 50,000VA |
| Contact Material | Silver Alloy |
| Contact Resistance | 1mΩ Max. |
| Operate/Release Time | 20ms Max. |
| Insulation Resistance | 1000 MΩ Min. (DC500V) |
| Dielectric Strength | Contact to Contact: AC3000V, 1min; Contact to Coil: AC4000V, 1min |
| Mechanical Life | 100,000 operations (at 1800 cycles/hour) |
| Electrical Life | 150A 250VAC: 6,000 operations; 200A 250VDC: 300 operations (at 360 cycles/hour) |
| Ambient Temperature | -40°C to +85°C |
| Humidity | 5% to 85% RH |
Key Parameters at a Glance
- Rated Current: 200A
- Max Switching Voltage: 2770VAC / 60VDC
- Contact Configuration: SPST (Form A, B, or C available)
- Coil Voltage Options (VDC): 6, 9, 12, 24
- Coil Types: Single Coil or Dual Coil
- Operate Power: Approx. 2.4W (Single Coil), 4.8W (Dual Coil)
- Insulation: 4kV between coil and contacts
- Operate/Release Pulse Width: ≥50ms
- Standards: Complies with IEC62055-31 UC3 & RoHS
Application Fields
This versatile 200A electromagnetic latching relay is designed for a wide range of high-power switching applications, including:
- Smart Energy Meters and Advanced Metering Infrastructure (AMI)
- Remote Electrical Control Systems
- Power Composite Switches
- Electric Vehicle (EV) Charging Piles/Stations
- Energy Management Systems (EMS)
- Industrial Automation and Control Panels
- Renewable Energy Systems (Solar/Wind Inverters)
- Uninterruptible Power Supplies (UPS) and Power Distribution Units (PDU)
