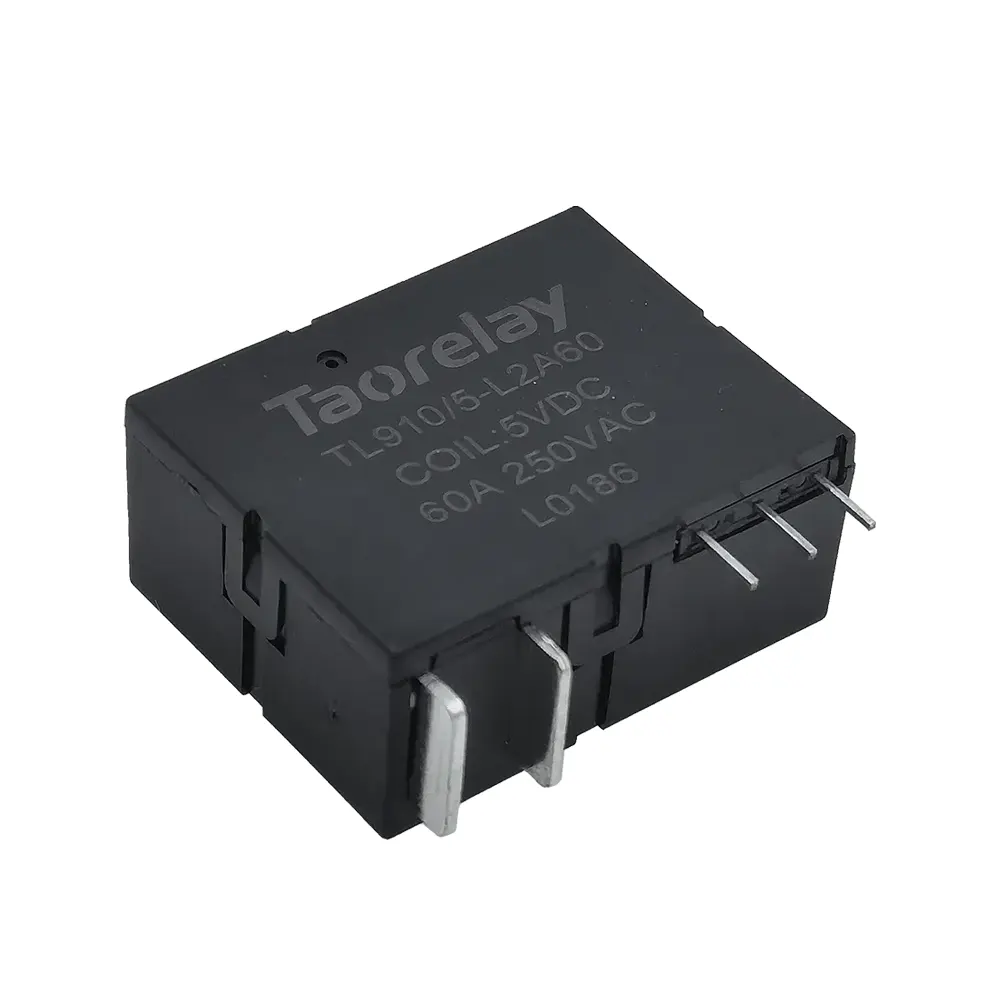

The TL910-60A is a high-performance magnetic relay switch 60A designed by Mingni Tech and used for high-current applications, offering 60A switching capacity with low power consumption. It uses magnetic latching technology, making it ideal for smart meters, electric vehicle charging stations, power equipment, and more.
Product Features
- 60A high current switching capacity with low power consumption
- Magnetic latching drive with pulse activation
- High impact resistance and reliability
- Magnetic arc extinguishing technology
- Voltage withstand between contact and coil up to 4000V
- Environmentally friendly, compliant with RoHS and CE standards
- Compliant with IEC62055-31 UC3 clause
- External dimensions: 38mm × 30mm × 16.5mm
Coil Parameters (Standard Type)
| Rated Voltage (VDC) | Coil Resistance (Ω) | Pick-up/Release Voltage | Pulse Width (ms) | Rated Power |
|---|---|---|---|---|
| 5V | 16.6 / 2×8.3 | 70% | ≥50 | Single coil approx. 12W / Double coil approx. 24W |
| 6V | 24 / 2×12 | Same as above | ||
| 9V | 54 / 2×27 | Same as above | ||
| 12V | 96 / 2×48 | Same as above | ||
| 24V | 384 / 2×192 | Same as above | ||
Performance Parameters of magnetic relay switch 60A
| Parameter | Value |
|---|---|
| Rated Load | 60A 250VAC |
| Maximum Switching Voltage | 440VAC / 110VDC |
| Maximum Switching Power | 15,000VA |
| Contact Resistance | ≤1.5mΩ (12VDC 1A) |
| Insulation Resistance | ≥1,000MΩ (500VDC) |
| Dielectric Withstand Voltage | Contact-to-coil: 4,000V AC; Contact-to-contact: 1,500V AC |
| Pick-up/Release Time | ≤20ms |
| Operating Temperature | -40℃ ~ +70℃ |
| Mechanical Life | 300,000 cycles (1,800 cycles/hour) |
| Electrical Life | 60A 250VAC / 3,000 cycles |
| Vibration/Shock Resistance | 10~55Hz, double amplitude 1.5mm / ≥100G |
Typical Applications
- Smart Meters
- Electric Vehicle Charging Stations
- Power Equipment
- Power Supply Modules and Industrial Control Systems
